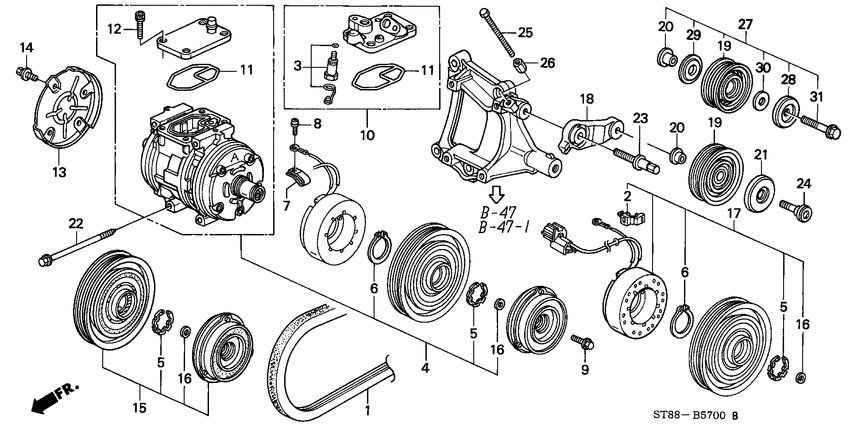

Air conditioner (COMPRESSOR; DENSO) Diagram Honda INTEGRA
- Year
- 1994
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LS
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38920-P08-003
Belt
|
38920-P08-003 |
— | ||
|
2
|
2
38773-PR3-003 ClipWIRE HARNESS |
38773-PR3-003 |
US $2.03 |
||
|
3
|
3
38801-P45-G01
Valve sub assy.
|
38801-P45-G01 |
— | ||
|
4
|
4
38810-P72-003 Compressor comp.DENSO |
38810-P72-003 |
US $591.36 |
||
|
5
|
5
38812-PH1-003 Ring bSNAP |
38812-PH1-003 |
US $4.06 |
||
|
6
|
6
38812-671-003 Ring aSNAP |
38812-671-003 |
from US $3.29 |
||
|
7
|
7
38816-PR3-003 ClipLEAD WIRE |
38816-PR3-003 |
US $1.82 |
||
|
8
|
8
38827-PH7-003 Screw-washer5X8 |
38827-PH7-003 |
US $1.26 |
||
|
9
|
9
38829-PR3-003 BoltWASHER HEAD |
38829-PR3-003 |
US $1.61 |
||
|
10
|
10
38838-P72-003
Valve
|
38838-P72-003 |
— | ||
|
11
|
11
38839-PR7-A01 O-ring |
38839-PR7-A01 |
US $7 |
||
|
12
|
12
38840-PC1-003 Bolt b |
38840-PC1-003 |
US $3.50 |
||
|
13
|
13
38885-PR3-003
Insulator
00000000 - 1000634 |
38885-PR3-003 |
— | ||
|
14
|
14
38886-PH1-602
Bolt-washer
00000000 - 1000634 |
38886-PH1-602 |
— | ||
|
15
|
15
38900-P75-003 Clutch set |
38900-P75-003 |
US $259.84 |
||
|
16
|
16
38912-PH1-N01 Plate setWASHER |
38912-PH1-N01 |
US $4.72 |
||
|
17
|
17
38924-P75-003
Stator set
|
38924-P75-003 |
— | ||
|
18
|
18
38941-P30-000
Bracket
|
38941-P30-000 |
— | ||
|
19
|
19
38942-PM3-000
Pulley comp
|
38942-PM3-000 |
— | ||
|
20
|
20
38944-PJ7-000 CollarIDLE PULLEY |
38944-PJ7-000 |
US $3.29 |
||
|
21
|
21
38945-P30-000 CoverBEARING |
38945-P30-000 |
US $4.40 |
||
|
22
|
22
90023-PR3-000 BoltFLANGE, 8X90 |
90023-PR3-000 |
US $2.80 |
||
|
23
|
23
90054-P30-000 BoltSPECIAL, 10X30 |
90054-P30-000 |
US $3.22 |
||
|
24
|
24
90086-PR3-000 BoltSOCKET, 10X28 |
90086-PR3-000 |
US $4.81 |
||
|
25
|
25
90087-P30-000
Bolt
|
90087-P30-000 |
— | ||
|
26
|
26
90279-P30-000
Nut
|
90279-P30-000 |
— |
