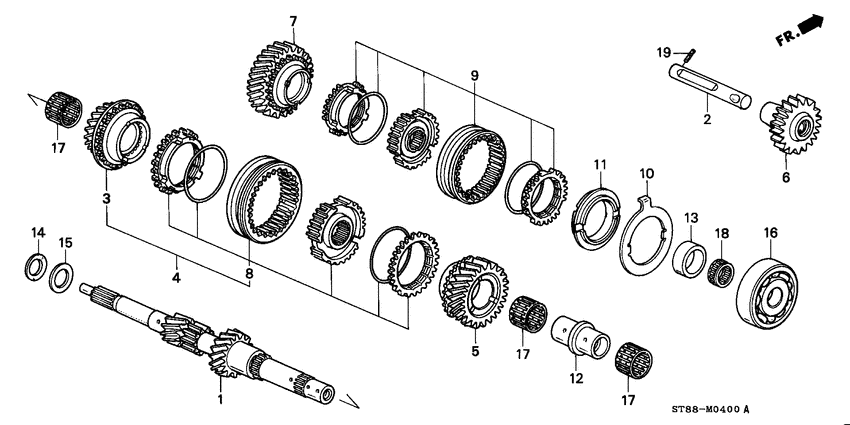

Mainshaft Diagram Honda INTEGRA
- Year
- 1994
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LS
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23210-PS1-A04
Mainshaft comp.
|
23210-PS1-A04 |
— | ||
|
2
|
2
23261-PS1-000
Shaft
00000000 - 1049608 |
23261-PS1-000 |
— | ||
|
2
|
2
23261-PS1-010
Shaft
1049609 - |
23261-PS1-010 |
— | ||
|
4
|
4
23442-PS1-305 Gear setMAINSHAFT THIRD |
23442-PS1-305 |
US $296.96 |
||
|
5
|
5
23451-PS1-A02 GearMAINSHAFT FOURTH |
23451-PS1-A02 |
US $92.16 |
||
|
6
|
6
23540-PF5-010
Gear comp
|
23540-PF5-010 |
— | ||
|
7
|
7
23581-P80-000
Gear
|
23581-P80-000 |
— | ||
|
9
|
9
23626-P21-325
Sleeve set
|
23626-P21-325 |
— | ||
|
10
|
10
23646-P21-000
Stopper
|
23646-P21-000 |
— | ||
|
11
|
11
23647-P21-000
Ring
|
23647-P21-000 |
— | ||
|
12
|
12
23915-P21-000 CollarDISTANCE, 31X38X56.5 |
23915-P21-000 |
US $31.85 |
||
|
13
|
13
23916-P21-M00
Collar
|
23916-P21-M00 |
— | ||
|
14
|
14
23927-PG2-A00
Washer
|
23927-PG2-A00 |
— | ||
|
15
|
15
23928-PS1-000
Washer
|
23928-PS1-000 |
— | ||
|
16
|
16
91004-P21-003 BearingANGULAR BALL, 28X72X18 |
91004-P21-003 |
US $25.16 |
||
|
17
|
17
91104-P21-008 BearingNEEDLE, 38X43X26 (NTN) |
91104-P21-008 |
US $9.18 |
||
|
18
|
18
91108-P21-008 BearingNEEDLE, 37X42X14.8 (NTN) |
91108-P21-008 |
US $9.63 |
||
|
19
|
19
94305-40082 PinSPRING, 4X8 |
94305-40082 |
from US $0.81 |
