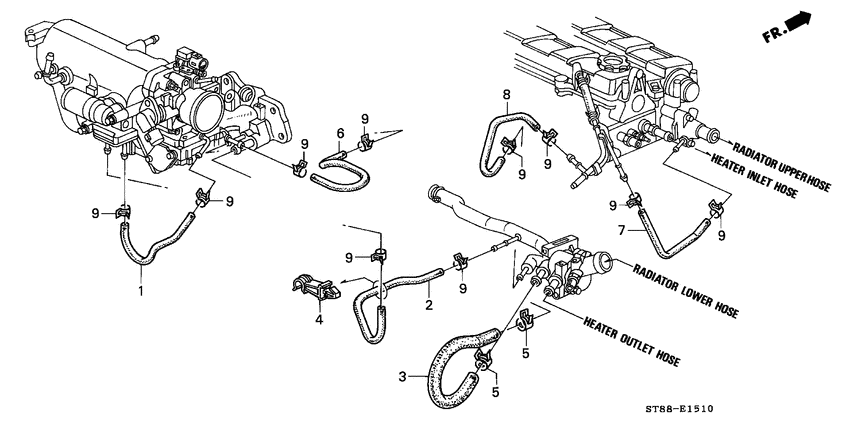

Water hose (1) Diagram Honda INTEGRA
- Year
- 1994
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LS
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19506-P75-000 Hose, ELECTRONIC AIR CONTROL VALVE IN.00000000 - 1000816 |
19506-P75-000 |
US $6.02 |
||
|
2
|
2
19507-P75-000 HoseELECTRONIC AIR CONTROL VALVE OUTLET 00000000 - 1000816 |
19507-P75-000 |
US $7.51 |
||
|
3
|
3
19508-P75-000
Hose
00000000 - 1000816 |
19508-P75-000 |
— | ||
|
4
|
4
19509-PR3-003
Clamp
00000000 - 1000816 |
19509-PR3-003 |
— | ||
|
5
|
5
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) 00000000 - 1000816 |
19513-PE0-003 |
from US $2.75 |
||
|
6
|
6
19521-P75-000
Hose
00000000 - 1000816 |
19521-P75-000 |
— | ||
|
7
|
7
19527-PR4-A50
Hose a
00000000 - 1000816 |
19527-PR4-A50 |
— | ||
|
8
|
8
19528-P75-000
Hose b
00000000 - 1000816 |
19528-P75-000 |
— | ||
|
9
|
9
95002-412-500-4 ClampTUBE (D12.5) 00000000 - 1000816 |
95002-412-500-4 |
from US $0.74 |
