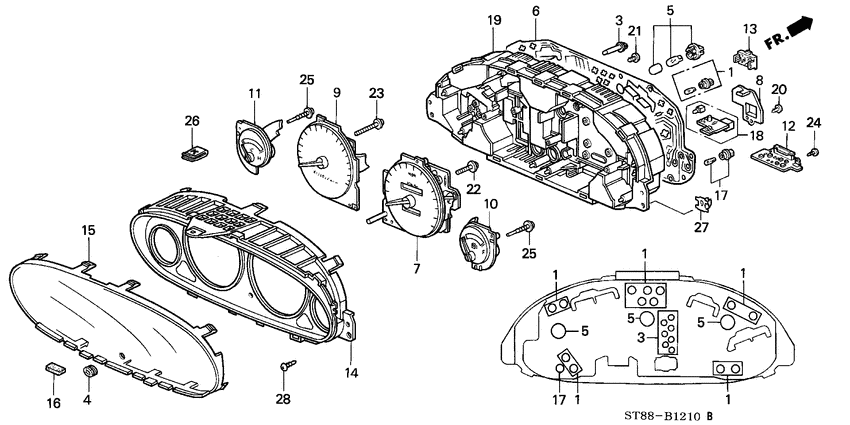

Combination meter components Diagram Honda INTEGRA
- Year
- 1999
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-SA5-004 Bulb & socket14V 1.4W) (DENSO) (BASE:BLACK |
35505-SA5-004 |
US $3.50 |
||
|
3
|
3
37103-ST7-003
Socket assy
|
37103-ST7-003 |
— | ||
|
5
|
5
37238-ST7-003
Socket assy
|
37238-ST7-003 |
— | ||
|
6
|
6
78108-ST7-N21
Panel
|
78108-ST7-N21 |
— | ||
|
7
|
7
78115-ST7-C11
Speedometer assy
|
78115-ST7-C11 |
— | ||
|
8
|
8
78116-ST7-N01
Cover
|
78116-ST7-N01 |
— | ||
|
9
|
9
78125-ST8-Y31
Tachometer assy.
|
78125-ST8-Y31 |
— | ||
|
10
|
10
78130-ST7-N11 Meter assyFUEL |
78130-ST7-N11 |
US $56.96 |
||
|
11
|
11
78135-ST7-N01
Meter assy
|
78135-ST7-N01 |
— | ||
|
12
|
12
78140-ST7-J21
Amplifier assy
|
78140-ST7-J21 |
— | ||
|
14
|
14
78155-ST7-D11
Visor assy
|
78155-ST7-D11 |
— | ||
|
15
|
15
78156-ST7-702
Lens
|
78156-ST7-702 |
— | ||
|
16
|
16
78175-SE3-004 GrommetDENSO |
78175-SE3-004 |
US $1.82 |
||
|
17
|
17
78180-SH2-902
Socket assy
|
78180-SH2-902 |
— | ||
|
18
|
18
78190-ST7-N11
Indicator assy.
|
78190-ST7-N11 |
— | ||
|
19
|
19
78235-ST7-N01
Case assy.
|
78235-ST7-N01 |
— | ||
|
21
|
21
90131-ST7-003 ScrewTAPPING |
90131-ST7-003 |
US $1.47 |
||
|
22
|
22
90132-SR3-004
Screw-washer
|
90132-SR3-004 |
— | ||
|
23
|
23
90132-ST7-003
Screw
|
90132-ST7-003 |
— | ||
|
24
|
24
90133-ST7-003 ScrewWAVE WASHER |
90133-ST7-003 |
US $1.61 |
||
|
25
|
25
90137-ST7-003
Screw
|
90137-ST7-003 |
— | ||
|
26
|
26
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
27
|
27
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
28
|
28
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
