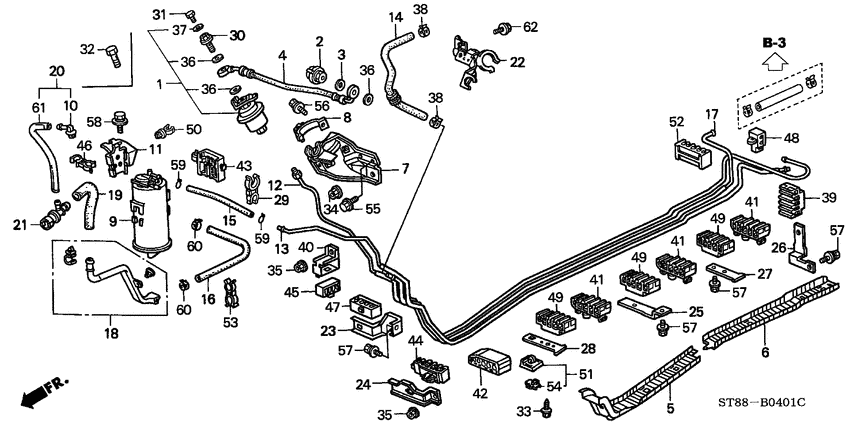

Fuel pipe ('96-) Diagram Honda INTEGRA
- Year
- 1999
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-ST5-933 Strainer setFUEL (TOYO ROKI) |
16010-ST5-933 |
US $53.30 |
||
| replacement | |||||
|
1
|
1
16010-ST5-E02 SETFUEL STRN COM |
16010-ST5-E02 |
from US $41.35 |
||
|
2
|
2
16680-PE7-661
Damper assy.
|
16680-PE7-661 |
— | ||
| replacement | |||||
|
2
|
2
16680-PCX-003 Damper assy.PULSATION |
16680-PCX-003 |
US $49.37 |
||
|
3
|
3
16705-PD1-003 GasketSILENCER |
16705-PD1-003 |
from US $2.74 |
||
|
4
|
4
16722-P75-A01
Hose comp.
|
16722-P75-A01 |
— | ||
|
5
|
5
16913-SR3-000
Cover
|
16913-SR3-000 |
— | ||
|
6
|
6
16914-SR4-000
Cover
|
16914-SR4-000 |
— | ||
|
7
|
7
16918-ST7-A30
Stay
|
16918-ST7-A30 |
— | ||
|
8
|
8
16919-ST7-930 BandFUEL STRAINER |
16919-ST7-930 |
US $4.90 |
||
|
9
|
9
17300-S04-G31
Canister assy
|
17300-S04-G31 |
— | ||
|
10
|
10
17306-ST7-003 JointCANISTER |
17306-ST7-003 |
US $4.07 |
||
|
11
|
11
17358-ST7-A00
Bracket
|
17358-ST7-A00 |
— | ||
|
12
|
12
17700-ST0-930
Pipe comp
|
17700-ST0-930 |
— | ||
|
13
|
13
17720-ST8-930
Pipe comp
|
17720-ST8-930 |
— | ||
|
14
|
14
17723-ST7-J10
Hose
|
17723-ST7-J10 |
— | ||
|
15
|
15
17724-ST7-930
Tube
|
17724-ST7-930 |
— | ||
|
16
|
16
17725-ST7-A30
Tube
|
17725-ST7-A30 |
— | ||
|
17
|
17
17740-ST8-A30
Pipe comp
|
17740-ST8-A30 |
— | ||
|
18
|
18
17742-SR3-023
Pipe
|
17742-SR3-023 |
— | ||
|
19
|
19
17743-SR3-A00
Tube
|
17743-SR3-A00 |
— | ||
|
20
|
20
17744-ST7-933
Tube
|
17744-ST7-933 |
— | ||
|
21
|
21
17745-ST0-003 JointCANISTER DRAIN |
17745-ST0-003 |
US $7.14 |
||
|
22
|
22
17749-ST7-930
Clamp comp
|
17749-ST7-930 |
— | ||
|
23
|
23
17761-SR3-010
Stay a
|
17761-SR3-010 |
— | ||
|
24
|
24
17762-SR3-J00
Stay b
|
17762-SR3-J00 |
— | ||
|
25
|
25
17763-SR3-000
Stay c
|
17763-SR3-000 |
— | ||
|
26
|
26
17764-ST7-L00
Stay d
|
17764-ST7-L00 |
— | ||
|
27
|
27
17765-SM4-000
Stay e
|
17765-SM4-000 |
— | ||
|
28
|
28
17765-ST7-000
Stay f
|
17765-ST7-000 |
— | ||
|
29
|
29
36027-P01-G01 ClampTUBE (7.5MM-11.5MM) |
36027-P01-G01 |
US $2.10 |
||
|
32
|
32
90021-P0A-003 BoltSEALING, 12MM |
90021-P0A-003 |
US $5.46 |
||
|
33
|
33
90164-S04-000
Screw
|
90164-S04-000 |
— | ||
|
34
|
34
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
35
|
35
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
36
|
36
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
38
|
38
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
39
|
39
91590-SR3-J31 CLAMP J, FUEL PIPE |
91590-SR3-J31 |
US $5.05 |
||
|
40
|
40
91591-SR3-010
Clip A
|
91591-SR3-010 |
— | ||
|
41
|
41
91592-SR3-J32 Clamp hFUEL PIPE (SANOU) |
91592-SR3-J32 |
US $3.50 |
||
|
42
|
42
91593-SR3-J31
Clamp g
|
91593-SR3-J31 |
— | ||
|
43
|
43
91594-SR3-G01
Clip
|
91594-SR3-G01 |
— | ||
|
44
|
44
91594-SR3-J32 Clamp fFUEL PIPE (SANOU) |
91594-SR3-J32 |
US $5.05 |
||
|
45
|
45
91595-ST7-E01
Clip A
|
91595-ST7-E01 |
— | ||
|
46
|
46
91595-ST7-003 ClipFUEL SUB TUBE |
91595-ST7-003 |
US $2.31 |
||
|
47
|
47
91596-SR3-J31 Clamp bFUEL PIPE |
91596-SR3-J31 |
US $5.05 |
||
|
48
|
48
91597-SR3-003
Clamp c
|
91597-SR3-003 |
— | ||
|
49
|
49
91598-SR3-J32 Clamp dFUEL PIPE (SANOU) |
91598-SR3-J32 |
US $5.54 |
||
|
51
|
51
91598-ST7-931
Grommet
|
91598-ST7-931 |
— | ||
|
52
|
52
91599-SR3-J32 Clamp eFUEL PIPE |
91599-SR3-J32 |
US $3.36 |
||
|
53
|
53
91599-ST7-003
Clamp
|
91599-ST7-003 |
— | ||
|
54
|
54
91599-S04-003 RetainerFUEL PIPE CLAMP |
91599-S04-003 |
US $2.45 |
||
|
55
|
55
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
56
|
56
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
57
|
57
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
58
|
58
93405-080-160-8 Bolt-washer8X16 |
93405-080-160-8 |
from US $0.74 |
||
|
59
|
59
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
60
|
60
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
61
|
61
95003-230-446-0 TubeVINYL, 8X12X440 (95003-23001-60M) |
95003-230-446-0 |
US $2.66 |
||
|
62
|
62
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
