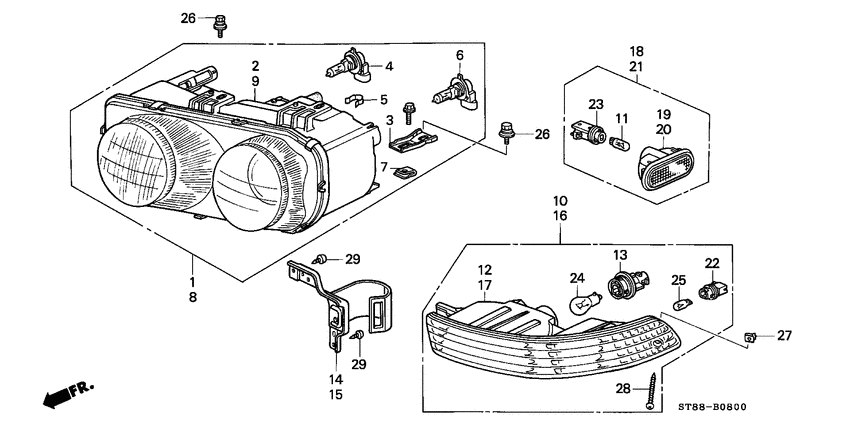

Headlight/front combination light Diagram Honda INTEGRA
- Year
- 1999
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
33101-ST7-A03
Headlight unit
|
33101-ST7-A03 |
— | ||
|
3
|
3
33102-ST7-000
Stay
|
33102-ST7-000 |
— | ||
|
4
|
4
33103-SL5-A02 BulbHEADLIGHT (HB3) (12V 60W) (KOITO) |
33103-SL5-A02 |
US $19.20 |
||
|
5
|
5
33105-ST7-000
Clip
|
33105-ST7-000 |
— | ||
|
6
|
6
33104-SL5-A02 BulbHEADLIGHT (HB4) (12V 51W) (KOITO) |
33104-SL5-A02 |
US $19.20 |
||
|
7
|
7
33104-ST7-000 NutSPECIAL |
33104-ST7-000 |
from US $1.61 |
||
|
9
|
9
33151-ST7-A03
Headlight unit
|
33151-ST7-A03 |
— | ||
|
12
|
12
33301-ST7-A11
Lamp unit
|
33301-ST7-A11 |
— | ||
|
13
|
13
33302-ST7-A01 PlugSOCKET |
33302-ST7-A01 |
US $7.84 |
||
|
14
|
14
33310-ST7-010 BracketR. FR. COMBINATION LIGHT |
33310-ST7-010 |
US $28.42 |
||
|
15
|
15
33315-ST7-010 BracketL. FR. COMBINATION LIGHT |
33315-ST7-010 |
US $28.42 |
||
|
17
|
17
33351-ST7-A11
Lamp unit
|
33351-ST7-A11 |
— | ||
|
22
|
22
34301-SL5-A02
Socket comp.
|
34301-SL5-A02 |
— | ||
|
24
|
24
34906-SB6-671 Bulb12V 27/8W |
34906-SB6-671 |
US $2.94 |
||
|
25
|
25
34908-SB6-671 Bulb12V 3CP) (KOITO |
34908-SB6-671 |
US $1.75 |
||
|
26
|
26
90146-SA7-000
Bolt-washer
|
90146-SA7-000 |
— | ||
| replacement | |||||
|
26
|
26
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
27
|
27
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
US $2.22 |
||
|
28
|
28
93901-248J0 ScrewTAPPING, 4X35 (STAINLESS) |
93901-248J0 |
US $0.74 |
||
|
29
|
29
93913-144J0 ScrewTAPPING, 4X16(PO) |
93913-144J0 |
US $1.17 |
||
