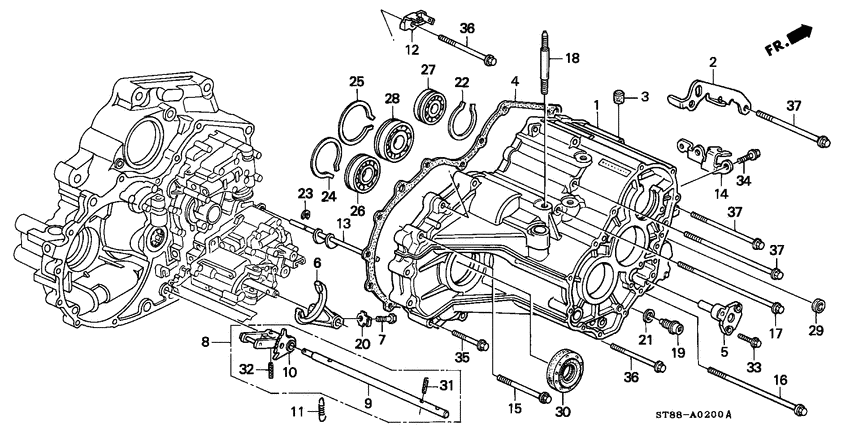

Transmission housing Diagram Honda INTEGRA
- Year
- 1999
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21210-P56-000 Case comp.TRANSMISSION |
21210-P56-000 |
US $380.16 |
||
|
2
|
2
21232-P56-000 HangerTRANSMISSION |
21232-P56-000 |
US $9.52 |
||
|
3
|
3
21396-PX5-000 CapBREATHER |
21396-PX5-000 |
US $3.18 |
||
|
4
|
4
21811-P56-000 PackingTORQUE CONVERTER CASE |
21811-P56-000 |
US $27.26 |
||
|
5
|
5
23540-P24-J01 Holder compREVERSE IDLE |
23540-P24-J01 |
US $19.33 |
||
|
6
|
6
24111-P24-J00 ForkREVERSE SHIFT |
24111-P24-J00 |
US $42.88 |
||
|
7
|
7
24282-634-000 BoltSHAFT FORK SETTING |
24282-634-000 |
from US $1.40 |
||
|
8
|
8
24410-P24-J01
Shaft comp.
|
24410-P24-J01 |
— | ||
|
11
|
11
24634-P24-J00
Spring
|
24634-P24-J00 |
— | ||
|
12
|
12
25967-P4X-000
Stay
|
25967-P4X-000 |
— | ||
|
13
|
13
27490-P56-010
Shaft comp.
|
27490-P56-010 |
— | ||
|
14
|
14
27496-P24-J01
Stay
|
27496-P24-J01 |
— | ||
|
15
|
15
90001-P56-000 BoltSPECIAL, 10X50 |
90001-P56-000 |
US $2.94 |
||
|
16
|
16
90002-P56-000 BoltFLANGE, 10X170 |
90002-P56-000 |
US $7 |
||
|
17
|
17
90003-P56-000 BoltFLANGE, 10X180 |
90003-P56-000 |
US $7 |
||
|
18
|
18
90042-P24-J00
Bolt
|
90042-P24-J00 |
— | ||
|
19
|
19
90081-PX4-003 BoltPLUG, 18MM |
90081-PX4-003 |
from US $5.54 |
||
|
20
|
20
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
21
|
21
90471-PX4-000 WasherDRAIN PLUG, 18MM |
90471-PX4-000 |
from US $1.58 |
||
|
22
|
22
90603-PB6-000 RingSNAP, 62MM |
90603-PB6-000 |
from US $3.78 |
||
|
23
|
23
90607-081-000 Circlip7MM |
90607-081-000 |
from US $2.37 |
||
|
24
|
24
90609-PC8-000 RingSNAP, 68MM |
90609-PC8-000 |
US $4.43 |
||
|
25
|
25
90615-PF4-000 RingSNAP, 75MM |
90615-PF4-000 |
US $2.73 |
||
|
26
|
26
91002-PK4-003 BearingBALL (63/26N) |
91002-PK4-003 |
US $16.43 |
||
|
27
|
27
91003-P24-J01 BearingBALL (22X62X15) |
91003-P24-J01 |
from US $17 |
||
|
28
|
28
91006-PK4-003 BearingBALL (63/32-26) |
91006-PK4-003 |
US $15.64 |
||
|
29
|
29
91201-PA9-004 Oil seal9X18X7 (ARAI) |
91201-PA9-004 |
from US $3.33 |
||
|
30
|
30
91206-PC8-005 Oil seal40X76X9 (NOK) |
91206-PC8-005 |
from US $16.14 |
||
|
30
|
30
91206-PC8-003
Oil seal
|
91206-PC8-003 |
— | ||
|
31
|
31
94305-40162 PinSPRING, 4X16 |
94305-40162 |
from US $0.81 |
||
|
33
|
33
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
34
|
34
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
35
|
35
95701-100-600-8 BoltFLANGE, 10X60 |
95701-100-600-8 |
from US $1.04 |
||
|
36
|
36
95701-100-800-8 BoltFLANGE, 10X80 |
95701-100-800-8 |
from US $1.18 |
||
|
37
|
37
95701-101-400-8 BoltFLANGE, 10X140 |
95701-101-400-8 |
US $1.85 |
