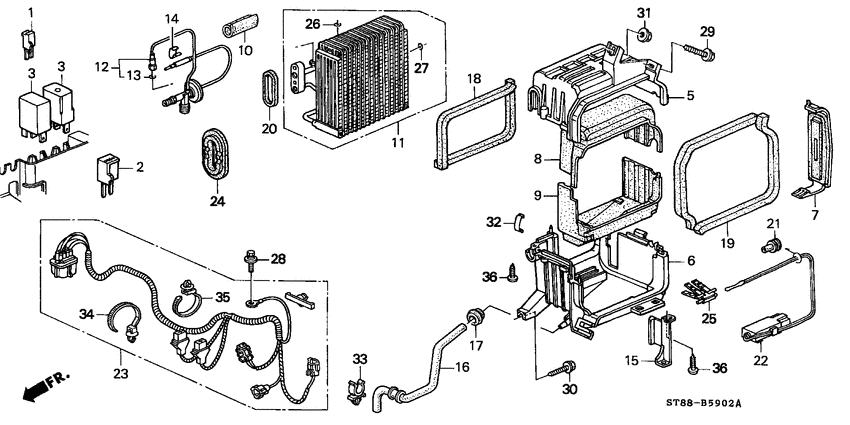

Air conditioner (COOLING UNIT; LH; '98-) Diagram Honda INTEGRA
- Year
- 1998
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32146-SD2-013 Diode3P |
32146-SD2-013 |
US $12.60 |
||
|
2
|
2
32146-SH3-003 ConnectorDIODE(2P) |
32146-SH3-003 |
from US $7.70 |
||
|
3
|
3
39794-S04-004
Relay assy
|
39794-S04-004 |
— | ||
|
5
|
5
80201-ST3-G00 CaseEVAPORATOR UPPER (SAK) |
80201-ST3-G00 |
US $42.50 |
||
|
6
|
6
80202-ST3-G00 Case, EVAPORATOR LOWER (SAK) |
80202-ST3-G00 |
US $42.50 |
||
|
7
|
7
80203-ST3-E00
Lid
|
80203-ST3-E00 |
— | ||
|
8
|
8
80205-ST3-G00 InsulatorEVAPORATOR UPPER (SAK) |
80205-ST3-G00 |
US $12.93 |
||
|
9
|
9
80206-ST3-G00 InsulatorEVAPORATOR LOWER |
80206-ST3-G00 |
US $14.85 |
||
|
10
|
10
80214-SL5-A01 InsulatorEXPANSION |
80214-SL5-A01 |
US $7.81 |
||
|
11
|
11
80215-ST3-G01 Evaporator comp.SAK |
80215-ST3-G01 |
US $422.96 |
||
|
12
|
12
80220-S84-A01
Valve assy.
|
80220-S84-A01 |
— | ||
|
13
|
13
80223-ST7-A01 O-ringFUJI KOKI |
80223-ST7-A01 |
US $2.73 |
||
|
14
|
14
80225-SR3-010 Clamp |
80225-SR3-010 |
US $2.38 |
||
|
15
|
15
80266-ST3-G00
Plate
|
80266-ST3-G00 |
— | ||
|
16
|
16
80271-ST7-A01
Hose
|
80271-ST7-A01 |
— | ||
|
17
|
17
80272-SF4-000 GrommetDRAIN HOSE |
80272-SF4-000 |
US $2.17 |
||
|
18
|
18
80286-SR3-000 SealEVAPORATOR INNER |
80286-SR3-000 |
US $7 |
||
|
19
|
19
80287-SR3-000 SealEVAPORATOR OUTER |
80287-SR3-000 |
US $7.84 |
||
|
20
|
20
80288-SR3-000 SealEVAPORATOR JOINT |
80288-SR3-000 |
US $6.19 |
||
|
21
|
21
80291-SR3-000 GrommetEVAPORATOR SENSOR |
80291-SR3-000 |
US $3.08 |
||
|
22
|
22
80430-SR3-003
Thermostat
|
80430-SR3-003 |
— | ||
|
23
|
23
80460-ST7-A01
Harness
|
80460-ST7-A01 |
— | ||
|
24
|
24
80464-SR3-000
Grommet
|
80464-SR3-000 |
— | ||
|
25
|
25
80566-SR3-003 ClipEVAPORATOR SENSOR |
80566-SR3-003 |
US $3.36 |
||
|
26
|
26
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
27
|
27
80873-ST7-000 O-ring8MM |
80873-ST7-000 |
from US $2.74 |
||
|
28
|
28
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
29
|
29
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
30
|
30
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
31
|
31
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
from US $1.47 |
||
|
32
|
32
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
33
|
33
91546-SR3-003 Clamp16.5 |
91546-SR3-003 |
US $2.16 |
||
|
34
|
34
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
35
|
35
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
36
|
36
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
