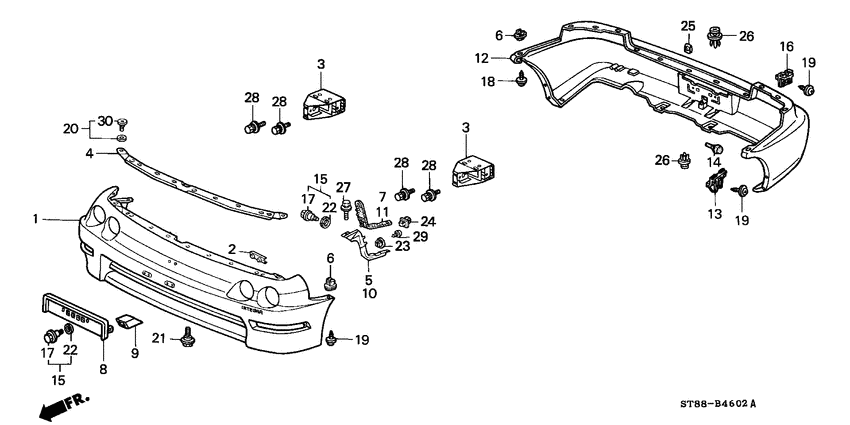

Bumpers ('98-; KD/KT/KU) Diagram Honda INTEGRA
- Year
- 1998
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71101-ST7-A00ZZ FaceFR. BUMPER |
71101-ST7-A00ZZ |
US $670.72 |
||
|
2
|
2
71113-SH2-000 NutLICENSE PLATE |
71113-SH2-000 |
US $6.51 |
||
|
3
|
3
71138-ST7-J00ZZ ExtensionFR. BUMPER BEAM |
71138-ST7-J00ZZ |
US $57.09 |
||
|
4
|
4
71142-ST7-000
Stiffener
|
71142-ST7-000 |
— | ||
|
5
|
5
71143-ST7-000
Stiffener
|
71143-ST7-000 |
— | ||
|
6
|
6
71144-SR3-013 GrommetBUMPER SIDE |
71144-SR3-013 |
US $2.44 |
||
|
7
|
7
71144-ST7-000
Seal
|
71144-ST7-000 |
— | ||
|
10
|
10
71193-ST7-000
Stiffener
|
71193-ST7-000 |
— | ||
|
11
|
11
71194-ST7-000
Seal
|
71194-ST7-000 |
— | ||
|
12
|
12
71501-ST8-A01ZZ
Face
|
71501-ST8-A01ZZ |
— | ||
|
13
|
13
71598-SH4-000
Spacer
|
71598-SH4-000 |
— | ||
|
14
|
14
74177-ST7-000 CushionBUMPER SIDE |
74177-ST7-000 |
US $3.99 |
||
|
15
|
15
90101-SE0-010 Bolt assy. bBUMPER |
90101-SE0-010 |
US $3.91 |
||
|
16
|
16
90108-SS0-003 ClipBUMPER SIDE |
90108-SS0-003 |
US $3.36 |
||
|
17
|
17
90109-SE0-003 Bolt bBUMPER |
90109-SE0-003 |
US $2.37 |
||
|
18
|
18
90121-SA7-000 ScrewTAPPING, 5X16 |
90121-SA7-000 |
US $4 |
||
|
19
|
19
90126-SR4-000 Screw-washer5X16 |
90126-SR4-000 |
from US $2.72 |
||
|
20
|
20
90130-SR2-003 Bolt assyBUMPER |
90130-SR2-003 |
US $3.70 |
||
|
21
|
21
90149-SA0-003 BoltBUMPER |
90149-SA0-003 |
from US $2 |
||
|
22
|
22
90540-SA7-000 WasherBUMPER |
90540-SA7-000 |
from US $1.47 |
||
|
23
|
23
90661-SJ8-000 GrommetSCREW, 5MM |
90661-SJ8-000 |
from US $1.11 |
||
|
24
|
24
90661-ST7-003 ClipFR. BUMPER SIDE |
90661-ST7-003 |
US $3.18 |
||
|
25
|
25
90675-SA5-003 NutCLIP, 6MM |
90675-SA5-003 |
from US $1.92 |
||
|
26
|
26
91503-SZ3-003 Clip A |
91503-SZ3-003 |
from US $1.94 |
||
|
27
|
27
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
28
|
28
93405-080-250-8 Bolt-washer8X25 |
93405-080-250-8 |
US $0.81 |
||
|
29
|
29
93903-15380 ScrewTAPPING, 5X16 |
93903-15380 |
from US $0.37 |
||
|
30
|
30
90104-SR2-003 Bolt cBUMPER |
90104-SR2-003 |
US $1.82 |
