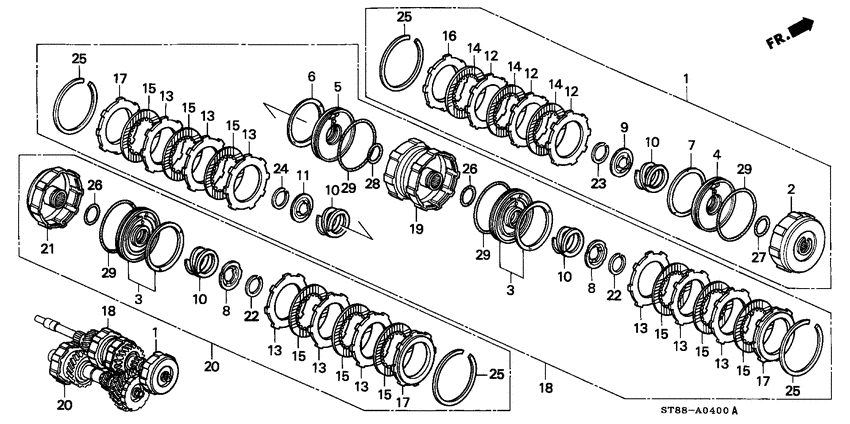

Clutch Diagram Honda INTEGRA
- Year
- 1998
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
22510-P4X-000 Guide compLOW CLUTCH |
22510-P4X-000 |
US $167.68 |
||
|
3
|
3
22530-PF4-000 Piston compCLUTCH |
22530-PF4-000 |
US $57.73 |
||
|
4
|
4
22530-PF4-003 Piston compCLUTCH (F.C.C) |
22530-PF4-003 |
US $57.98 |
||
|
4
|
4
22520-PF4-010 Piston compLOW CLUTCH |
22520-PF4-010 |
US $59.78 |
||
|
5
|
5
22530-P56-N00 Piston compCLUTCH |
22530-P56-N00 |
US $54.02 |
||
|
6
|
6
22537-PG4-013
Spring
|
22537-PG4-013 |
— | ||
|
7
|
7
22537-P4X-000
Spring
|
22537-P4X-000 |
— | ||
|
8
|
8
22542-PA9-000 SeatCLUTCH SPRING |
22542-PA9-000 |
from US $2.80 |
||
|
9
|
9
22542-P56-N00 SeatRETURN SPRING |
22542-P56-N00 |
US $3.64 |
||
|
10
|
10
22542-PF4-013
Spring
|
22542-PF4-013 |
— | ||
|
11
|
11
22542-P56-N00 SeatRETURN SPRING |
22542-P56-N00 |
US $3.64 |
||
|
12
|
12
22543-P4X-000 PlateCLUTCH (116MM) |
22543-P4X-000 |
US $9.10 |
||
|
13
|
13
22543-P56-N00 PlateCLUTCH (116MM) |
22543-P56-N00 |
from US $10.22 |
||
|
14
|
14
22644-P4X-003 DiskCLUTCH |
22644-P4X-003 |
US $21.63 |
||
|
15
|
15
22544-P56-N01 DiskCLUTCH |
22544-P56-N01 |
US $18.43 |
||
| replacement | |||||
|
15
|
15
22544-RJM-013 DISK CLUTCH |
22544-RJM-013 |
US $22.58 |
||
|
16
|
16
22558-P56-N00 PlateCLUTCH END (8) (2.8MM) |
22558-P56-N00 |
US $15.23 |
||
|
16
|
16
22553-P56-N00 PlateCLUTCH END (3) (2.3MM) |
22553-P56-N00 |
US $15.23 |
||
|
16
|
16
22557-P56-N00 PlateCLUTCH END (7) (2.7MM) |
22557-P56-N00 |
US $15.23 |
||
|
16
|
16
22552-P56-N00
Plate
|
22552-P56-N00 |
— | ||
|
16
|
16
22556-P56-N00 PlateCLUTCH END (6) (2.6MM) |
22556-P56-N00 |
US $15.23 |
||
|
16
|
16
22551-P56-N00 PlateCLUTCH END (1) (2.1MM) |
22551-P56-N00 |
US $15.23 |
||
|
16
|
16
22560-P56-N00 PlateCLUTCH END (10) (3.0MM) |
22560-P56-N00 |
US $15.23 |
||
|
16
|
16
22555-P56-N00 PlateCLUTCH END (5) (2.5MM) |
22555-P56-N00 |
US $15.23 |
||
|
16
|
16
22559-P56-N00 PlateCLUTCH END (9) (2.9MM) |
22559-P56-N00 |
US $15.23 |
||
|
16
|
16
22554-P56-N00 PlateCLUTCH END (4) (2.4MM) |
22554-P56-N00 |
US $15.23 |
||
|
17
|
17
22556-P56-N00 PlateCLUTCH END (6) (2.6MM) |
22556-P56-N00 |
US $15.23 |
||
|
17
|
17
22551-P56-N00 PlateCLUTCH END (1) (2.1MM) |
22551-P56-N00 |
US $15.23 |
||
|
17
|
17
22560-P56-N00 PlateCLUTCH END (10) (3.0MM) |
22560-P56-N00 |
US $15.23 |
||
|
17
|
17
22555-P56-N00 PlateCLUTCH END (5) (2.5MM) |
22555-P56-N00 |
US $15.23 |
||
|
17
|
17
22559-P56-N00 PlateCLUTCH END (9) (2.9MM) |
22559-P56-N00 |
US $15.23 |
||
|
17
|
17
22554-P56-N00 PlateCLUTCH END (4) (2.4MM) |
22554-P56-N00 |
US $15.23 |
||
|
17
|
17
22558-P56-N00 PlateCLUTCH END (8) (2.8MM) |
22558-P56-N00 |
US $15.23 |
||
|
17
|
17
22553-P56-N00 PlateCLUTCH END (3) (2.3MM) |
22553-P56-N00 |
US $15.23 |
||
|
17
|
17
22557-P56-N00 PlateCLUTCH END (7) (2.7MM) |
22557-P56-N00 |
US $15.23 |
||
|
17
|
17
22552-P56-N00
Plate
|
22552-P56-N00 |
— | ||
|
18
|
18
22600-P56-N00
Clutch assy.
|
22600-P56-N00 |
— | ||
|
19
|
19
22610-PF4-010 Guide compCLUTCH (2-4) |
22610-PF4-010 |
US $330.24 |
||
|
20
|
20
22650-P56-N00
Clutch assy.
|
22650-P56-N00 |
— | ||
|
21
|
21
22661-PF4-000 Guide compTHIRD CLUTCH |
22661-PF4-000 |
US $166.40 |
||
|
22
|
22
90603-PA9-000 CirclipEXTERNAL, 40MM |
90603-PA9-000 |
from US $3.11 |
||
|
23
|
23
90603-P56-N00 CirclipEXTERNAL, 42MM |
90603-P56-N00 |
US $2.66 |
||
|
24
|
24
90603-P56-N00 CirclipEXTERNAL, 42MM |
90603-P56-N00 |
US $2.66 |
||
|
25
|
25
90605-PF4-000 RingSNAP, 125MM |
90605-PF4-000 |
US $7 |
||
|
26
|
26
91302-PA9-003 O-ring39.8X2.2 (ARAI) |
91302-PA9-003 |
from US $2.96 |
||
|
27
|
27
91302-PG4-003 O-ring42.8X2.2 (ARAI) |
91302-PG4-003 |
US $3.40 |
||
|
28
|
28
91302-PG4-003 O-ring42.8X2.2 (ARAI) |
91302-PG4-003 |
US $3.40 |
||
|
29
|
29
91303-PF4-004 O-ring110X2.2 (NOK) |
91303-PF4-004 |
US $4 |
||
