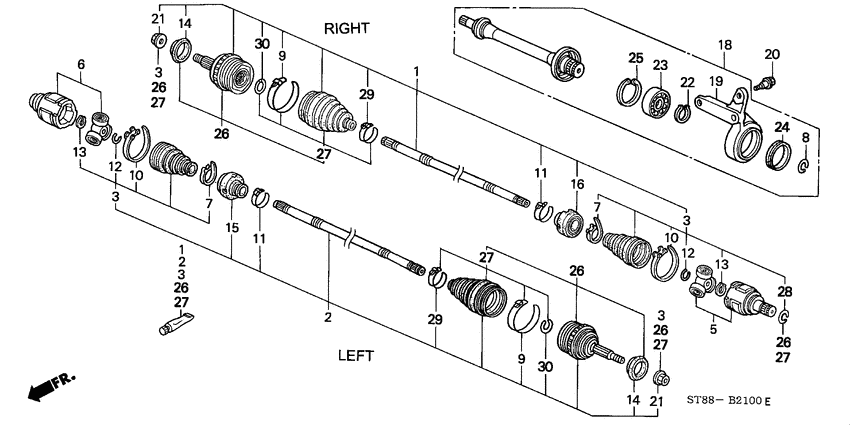

Front driveshaft/ half shaft (-'99) Diagram Honda INTEGRA
- Year
- 1998
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44010-S04-J01 Driveshaft setR. |
44010-S04-J01 |
US $440.32 |
||
|
2
|
2
44011-S04-J01 Driveshaft setL. |
44011-S04-J01 |
US $360.96 |
||
|
3
|
3
44017-S0A-020 Boot setINBOARD |
44017-S0A-020 |
US $68.48 |
||
|
5
|
5
44310-S04-J00
Joint comp
|
44310-S04-J00 |
— | ||
|
6
|
6
44310-S04-J50
Joint comp
|
44310-S04-J50 |
— | ||
|
7
|
7
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
8
|
8
44319-SE0-000
Set ring
|
44319-SE0-000 |
— | ||
| replacement | |||||
|
8
|
8
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
9
|
9
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
10
|
10
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
11
|
11
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
13
|
13
44338-SA2-300 Circlip24MM |
44338-SA2-300 |
US $2.52 |
||
|
15
|
15
44351-S04-J11
Damper
|
44351-S04-J11 |
— | ||
|
16
|
16
44351-S04-J01
Damper
|
44351-S04-J01 |
— | ||
|
18
|
18
44500-SR3-J81 SHAFT ASSY.,HALF |
44500-SR3-J81 |
US $331.84 |
||
|
19
|
19
44502-SR3-J80
Support comp
|
44502-SR3-J80 |
— | ||
|
20
|
20
90102-SF1-000 BoltHEX., 10X1.25 |
90102-SF1-000 |
from US $3.67 |
||
|
21
|
21
90305-692-010 Nut |
90305-692-010 |
US $6.84 |
||
|
22
|
22
90681-SR3-000 CirclipEXTERNAL, 33MM |
90681-SR3-000 |
from US $2.66 |
||
|
23
|
23
91057-SR3-008 BearingHALF SHAFT(NTN) |
91057-SR3-008 |
from US $14.65 |
||
|
24
|
24
91260-SR3-004 SealHALF SHAFT OUTER (ARAI) |
91260-SR3-004 |
from US $8.14 |
||
|
24
|
24
91260-SR3-003 SealHALF SHAFT OUTER(NOK) |
91260-SR3-003 |
US $8.14 |
||
|
25
|
25
94520-55000 CirclipINTERNAL, 55MM |
94520-55000 |
from US $1.48 |
||
|
26
|
26
44014-S04-J00 Joint setOUTBOARD |
44014-S04-J00 |
US $293.12 |
||
|
27
|
27
44018-S0A-C00 Boot setOUTBOARD |
44018-S0A-C00 |
US $71.68 |
||
|
28
|
28
44319-S0A-300 Set ring28X2.0 |
44319-S0A-300 |
from US $2.21 |
||
| replacement | |||||
|
28
|
28
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
29
|
29
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
30
|
30
44337-SA2-300 Ring bSTOPPER |
44337-SA2-300 |
US $1.75 |
||
