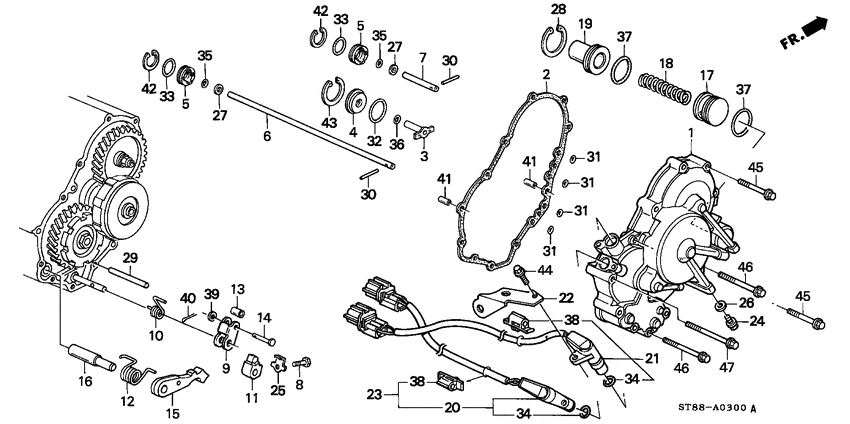

R. side cover Diagram Honda INTEGRA
- Year
- 1998
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21240-P4X-000 Cover comp.R. SIDE |
21240-P4X-000 |
US $138.24 |
||
|
2
|
2
21812-P24-J01 PackingR. SIDE COVER |
21812-P24-J01 |
US $14.06 |
||
|
3
|
3
22710-PH0-010 Pipe aFEED |
22710-PH0-010 |
from US $7.70 |
||
|
4
|
4
22713-PC9-010 Guide aFEED PIPE |
22713-PC9-010 |
from US $2.38 |
||
|
5
|
5
22721-PA9-003 FlangeFEED PIPE |
22721-PA9-003 |
US $7.56 |
||
|
6
|
6
22722-P24-J00 Pipe cFEED |
22722-P24-J00 |
US $12.93 |
||
|
7
|
7
22723-PS5-000 Pipe dFEED |
22723-PS5-000 |
US $7.56 |
||
|
8
|
8
24282-634-000 BoltSHAFT FORK SETTING |
24282-634-000 |
from US $1.40 |
||
|
9
|
9
24532-PN6-003 LeverPARKING BRAKE |
24532-PN6-003 |
from US $8.96 |
||
|
10
|
10
24535-P4T-000
Spring
|
24535-P4T-000 |
— | ||
|
11
|
11
24537-PA9-003
Stopper
|
24537-PA9-003 |
— | ||
|
11
|
11
24539-PA9-003
Stopper
|
24539-PA9-003 |
— | ||
|
11
|
11
24538-PA9-003 StopperPARKING BRAKE (2) |
24538-PA9-003 |
US $29.77 |
||
|
12
|
12
24552-PS5-000
Spring
|
24552-PS5-000 |
— | ||
|
13
|
13
24553-PN6-000 RollerPARKING BRAKE |
24553-PN6-000 |
from US $2.59 |
||
|
14
|
14
24555-PN6-000 PinROLLER, 6MM |
24555-PN6-000 |
from US $3.36 |
||
|
15
|
15
24561-P24-J00
Pawl
|
24561-P24-J00 |
— | ||
|
16
|
16
24562-PA9-000
Shaft
|
24562-PA9-000 |
— | ||
|
17
|
17
27551-PX3-000 PistonLOW HOLD ACCUMULATOR |
27551-PX3-000 |
US $13.86 |
||
|
18
|
18
27552-PX3-003
Spring
|
27552-PX3-003 |
— | ||
|
19
|
19
27553-PX3-000
Cover
|
27553-PX3-000 |
— | ||
|
20
|
20
28810-P4V-004 Pick up assy.MAIN (KEIHIN) |
28810-P4V-004 |
US $88.96 |
||
|
20
|
20
28810-P4V-003 Pick up assy.MAIN (TEC) |
28810-P4V-003 |
US $96.64 |
||
|
21
|
21
28810-P78-003 Pick up assy.MAIN (TEC) |
28810-P78-003 |
US $80 |
||
|
21
|
21
28810-P56-003 Pick up assy.MAIN (SHINDENGEN) |
28810-P56-003 |
US $93.44 |
||
|
22
|
22
28811-P4X-000
Stay
|
28811-P4X-000 |
— | ||
|
24
|
24
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
25
|
25
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
26
|
26
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.70 |
||
|
27
|
27
90507-PA9-000 Collar8X11 |
90507-PA9-000 |
US $1.54 |
||
|
28
|
28
90606-PX3-000
Circlip
|
90606-PX3-000 |
— | ||
|
29
|
29
90701-639-000 Dowel pin8X55 |
90701-639-000 |
US $2.59 |
||
|
30
|
30
90703-PA9-003 Roller2X19.8 |
90703-PA9-003 |
US $1.26 |
||
|
31
|
31
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
32
|
32
91305-PC9-003 O-ring34X1.9 (ARAI) |
91305-PC9-003 |
from US $2.74 |
||
|
33
|
33
91308-PA9-003 O-ring19.8X1.9 (ARAI) |
91308-PA9-003 |
from US $2.15 |
||
|
34
|
34
91309-PX4-003 O-ring16X2.1 (NOK) |
91309-PX4-003 |
from US $1.92 |
||
|
35
|
35
91311-PA9-004 O-ring7.7X1.9 (NOK) |
91311-PA9-004 |
from US $1.78 |
||
|
36
|
36
91314-PC9-004 O-ring8.5X1.9 (NOK) |
91314-PC9-004 |
from US $1.48 |
||
|
37
|
37
91302-PN6-004 O-ring34.3X2.4 (NOK) |
91302-PN6-004 |
US $2.29 |
||
|
38
|
38
91558-SE3-003 ClipHOOD WIRE |
91558-SE3-003 |
US $4 |
||
|
39
|
39
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
40
|
40
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
41
|
41
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
42
|
42
94520-26000 CirclipINTERNAL, 26MM |
94520-26000 |
from US $0.81 |
||
|
43
|
43
94520-38000 CirclipINTERNAL, 38MM |
94520-38000 |
from US $1.04 |
||
|
44
|
44
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
45
|
45
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
|
46
|
46
95701-060-550-8 BoltFLANGE, 6X55 |
95701-060-550-8 |
from US $0.81 |
||
|
47
|
47
95701-060-650-8 BoltFLANGE, 6X65 |
95701-060-650-8 |
from US $0.81 |
