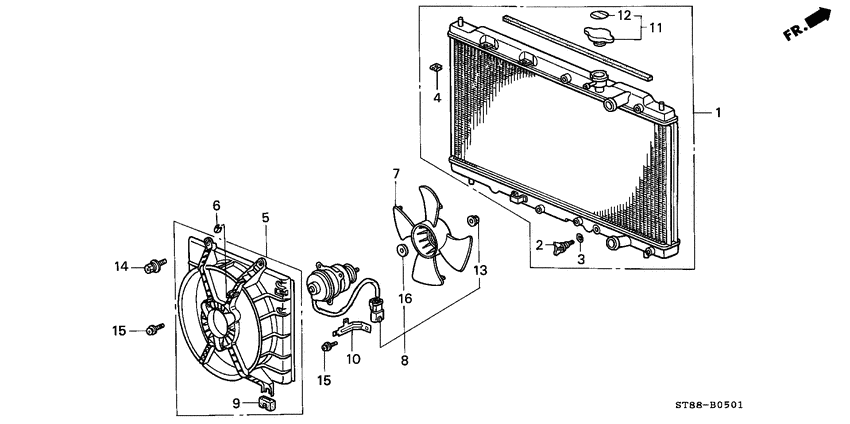

Radiator (SAK) Diagram Honda INTEGRA
- Year
- 1998
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-P75-A53 Radiator compSAK |
19010-P75-A53 |
US $1,207.04 |
||
|
2
|
2
19011-PV0-005 CockDRAIN (SAK) |
19011-PV0-005 |
US $7.28 |
||
|
3
|
3
19012-PV0-005 O-ringSAK |
19012-PV0-005 |
US $2.17 |
||
|
4
|
4
19014-PR3-005 NutSET (M6) |
19014-PR3-005 |
US $2.66 |
||
|
5
|
5
19015-P72-A03
Shroud comp
|
19015-P72-A03 |
— | ||
|
6
|
6
19017-PR3-005
Clip
|
19017-PR3-005 |
— | ||
|
7
|
7
19020-P72-A01
Fan comp
|
19020-P72-A01 |
— | ||
|
8
|
8
19030-P72-A01
Motor
|
19030-P72-A01 |
— | ||
|
9
|
9
19032-PR3-005 Grommet |
19032-PR3-005 |
US $2.66 |
||
|
10
|
10
19033-P72-005
Stay
|
19033-P72-005 |
— | ||
|
11
|
11
19045-P72-005
Cap comp.
|
19045-P72-005 |
— | ||
|
12
|
12
19046-PV1-000 SealCAP |
19046-PV1-000 |
US $1.63 |
||
|
13
|
13
90041-PG6-004 NutHEX., 5MM(MITSUBA) |
90041-PG6-004 |
from US $1.47 |
||
|
14
|
14
90042-PR3-005 Bolt-washer6X20 |
90042-PR3-005 |
US $1.40 |
||
|
15
|
15
90050-PV0-005 Screw-washer4X12 |
90050-PV0-005 |
US $1.26 |
||
|
16
|
16
90403-P5M-004
Spacer
|
90403-P5M-004 |
— |
