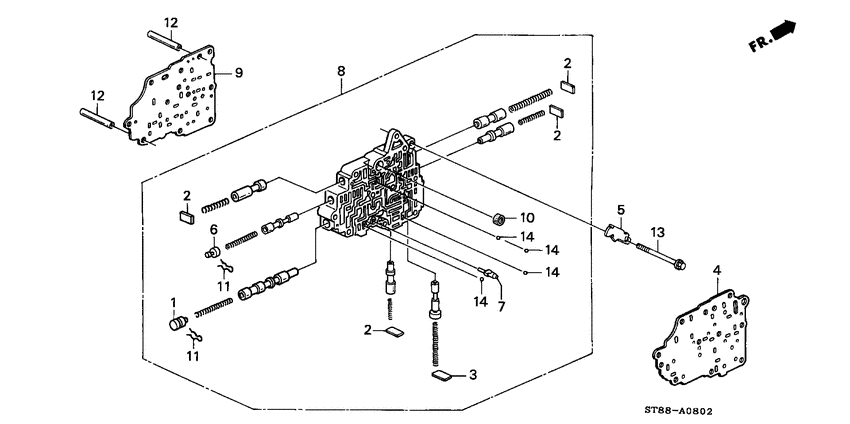

Secondary body Diagram Honda INTEGRA
- Year
- 1998
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27122-P56-J00
Cap
|
27122-P56-J00 |
— | ||
|
2
|
2
27263-PA9-000 Seat Valve Sping 1.0mmVALVE SPRING, 1.0MM |
27263-PA9-000 |
US $2.66 |
||
|
3
|
3
27263-PX3-000 SeatVALVE SPRING |
27263-PX3-000 |
from US $1.85 |
||
|
4
|
4
27412-P4X-000 PlateSERVO SEPARATING |
27412-P4X-000 |
US $13.86 |
||
|
5
|
5
27413-P24-J00
Stay
|
27413-P24-J00 |
— | ||
|
6
|
6
27543-PL5-J11
Cap
|
27543-PL5-J11 |
— | ||
|
7
|
7
27563-P24-J00
Choke
|
27563-P24-J00 |
— | ||
|
8
|
8
27700-P56-010 Body assySECONDARY |
27700-P56-010 |
US $263.68 |
||
|
9
|
9
27712-P56-020
Plate
|
27712-P56-020 |
— | ||
|
10
|
10
27750-PL5-J01 FilterSECONDARY BODY |
27750-PL5-J01 |
US $5.91 |
||
|
11
|
11
90638-P56-000 ClipVALVE CAP |
90638-P56-000 |
US $1.68 |
||
|
12
|
12
91704-PF4-000 Dowel pin8X40 |
91704-PF4-000 |
from US $2.24 |
||
|
13
|
13
95701-060-550-8 BoltFLANGE, 6X55 |
95701-060-550-8 |
from US $0.81 |
||
|
14
|
14
96211-07000 BallSTEEL, #7 (7/32) |
96211-07000 |
from US $0.15 |
