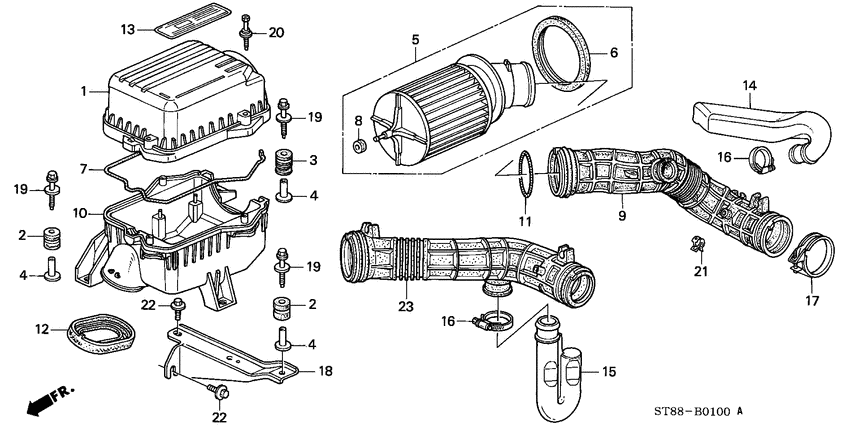

Air cleaner Diagram Honda INTEGRA
- Year
- 1997
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17210-P72-000
Cover comp.
|
17210-P72-000 |
— | ||
|
2
|
2
17212-PN3-000
Rubber, AIR CLEANER MOUNTING
|
17212-PN3-000 |
— | ||
| replacement | |||||
|
2
|
2
17212-P2J-J00 Rubber, AIR CLEANER MOUNTING |
17212-P2J-J00 |
from US $2.69 |
||
|
3
|
3
17212-P07-000 RubberAIR CLEANER MOUNTING |
17212-P07-000 |
US $3.22 |
||
|
4
|
4
17216-PN3-000 CollarAIR CLEANER MOUNTING |
17216-PN3-000 |
from US $2.29 |
||
|
5
|
5
17220-P72-000 Element assy.AIR CLEANER |
17220-P72-000 |
US $44.80 |
||
|
6
|
6
17221-P72-300
Rubber
|
17221-P72-300 |
— | ||
|
7
|
7
17222-P72-000
Rubber
|
17222-P72-000 |
— | ||
|
8
|
8
17223-P72-300
Rubber
|
17223-P72-300 |
— | ||
|
10
|
10
17241-P72-000
Case comp.
|
17241-P72-000 |
— | ||
|
11
|
11
17244-P72-000
Spring
|
17244-P72-000 |
— | ||
|
12
|
12
17249-P72-000
Rubber
|
17249-P72-000 |
— | ||
|
15
|
15
17281-P75-000
Tube
|
17281-P75-000 |
— | ||
|
16
|
16
17284-P2J-003 ClampTUBE (D44) |
17284-P2J-003 |
US $5.18 |
||
|
17
|
17
17315-PH3-003 ClampAIR FLOW TUBE (74) |
17315-PH3-003 |
US $4.34 |
||
|
18
|
18
60616-ST7-000ZZ
Stay
|
60616-ST7-000ZZ |
— | ||
|
19
|
19
90001-P0A-000 Bolt-washerSPECIAL, 6X35 0S300062 - |
90001-P0A-000 |
from US $2.52 |
||
|
19
|
19
90002-PS4-000 Bolt-washerSPECIAL, 6X39 00000000 - 0S300061 |
90002-PS4-000 |
US $3.01 |
||
|
20
|
20
90091-P36-000 Bolt-washer5X28 |
90091-P36-000 |
from US $2.44 |
||
|
21
|
21
91405-PG7-003 ClipHOSE (D13) |
91405-PG7-003 |
US $3.26 |
||
|
22
|
22
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
23
|
23
17228-P75-000
Tube
|
17228-P75-000 |
— | ||
