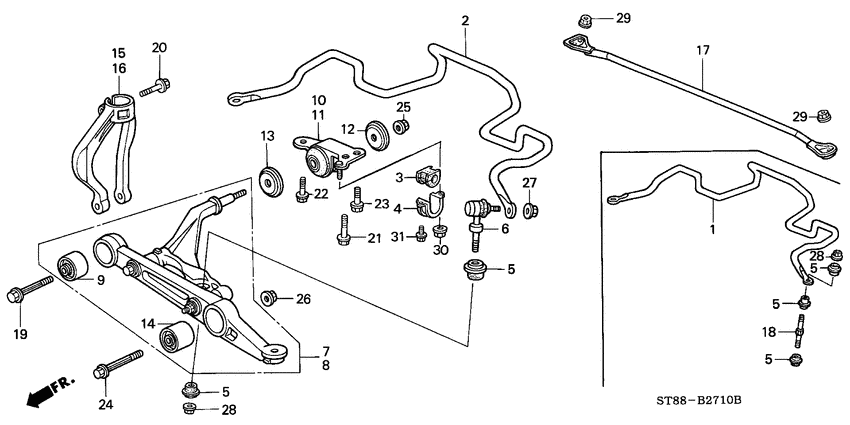

Front stabilizer/ front lower arm Diagram Honda INTEGRA
- Year
- 1997
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LS
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51300-SR3-N02
Spring
|
51300-SR3-N02 |
— | ||
|
3
|
3
51306-SR3-N01
Bush
|
51306-SR3-N01 |
— | ||
|
4
|
4
51308-SR3-000 HolderR. FR. STABILIZER |
51308-SR3-000 |
US $8.79 |
||
|
5
|
5
51312-SR3-000 RubberSTABILIZER END |
51312-SR3-000 |
US $10.91 |
||
|
7
|
7
51350-ST7-010
Arm assy.
|
51350-ST7-010 |
— | ||
|
8
|
8
51360-ST7-010
Arm assy.
|
51360-ST7-010 |
— | ||
|
9
|
9
51392-ST7-013 BushFR. LOWER ARM |
51392-ST7-013 |
US $14.98 |
||
|
10
|
10
51395-ST7-004
Bush comp
|
51395-ST7-004 |
— | ||
|
11
|
11
51396-ST7-004
Bush comp
|
51396-ST7-004 |
— | ||
|
12
|
12
51398-SR3-000
Washer b
|
51398-SR3-000 |
— | ||
|
13
|
13
51399-SR3-010
Washer a
|
51399-SR3-010 |
— | ||
|
14
|
14
51810-SH3-004 BushSHOCK ABSORBER FORK (YAMASHITA) |
51810-SH3-004 |
US $16.73 |
||
|
15
|
15
51811-SR3-010
Fork
|
51811-SR3-010 |
— | ||
|
16
|
16
51821-SR3-010 ForkL. FR. SHOCK ABSORBER |
51821-SR3-010 |
US $65.28 |
||
|
18
|
18
90112-SE0-000 BoltFR. STABILIZER |
90112-SE0-000 |
US $12.21 |
||
|
19
|
19
90118-SR3-003 BoltSELF-LOCK, 12X76 |
90118-SR3-003 |
US $7.99 |
||
|
20
|
20
90120-SB0-003 BoltSHOCK ABSORBER LOCK, 10X42 |
90120-SB0-003 |
US $4.29 |
||
|
21
|
21
90162-SR3-000 BoltFLANGE, 14X60 |
90162-SR3-000 |
US $5.77 |
||
|
22
|
22
90164-SR3-013 BoltSELF-LOCK, 14X34 |
90164-SR3-013 |
US $7.99 |
||
|
23
|
23
90168-SR3-000
Bolt
|
90168-SR3-000 |
— | ||
|
24
|
24
90175-SH3-005 BoltSHOCK ABSORBER FORK |
90175-SH3-005 |
US $9.32 |
||
|
25
|
25
90213-SR3-013 NutSELF-LOCK, 14MM |
90213-SR3-013 |
US $3.85 |
||
|
26
|
26
90215-SB0-003 NutSELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
90215-SB0-003 |
from US $3.20 |
||
|
28
|
28
90362-SF1-003 NutSELF-LOCK, 8MM |
90362-SF1-003 |
US $3.51 |
||
|
30
|
30
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
31
|
31
95801-080-160-8
Bolt
|
95801-080-160-8 |
— | ||
| replacement | |||||
|
31
|
31
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
