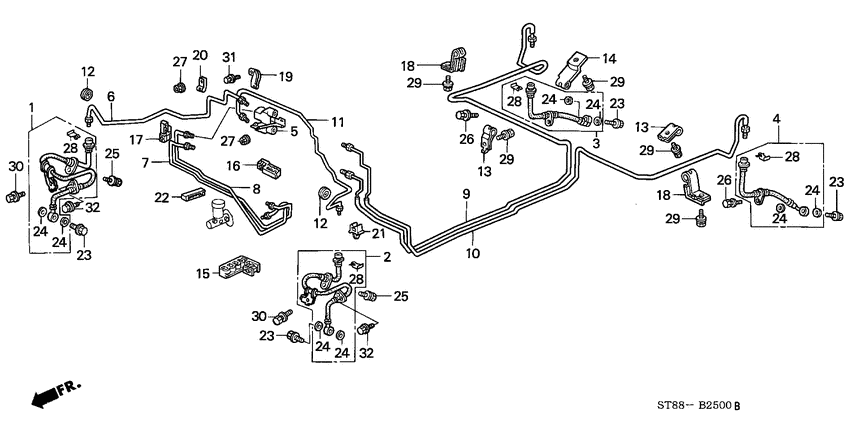

Brake lines (-'97; LH) Diagram Honda INTEGRA
- Year
- 1996
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LS
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01464-SR3-N03
Hose set
|
01464-SR3-N03 |
— | ||
|
2
|
2
01465-SR3-N02
Hose set
|
01465-SR3-N02 |
— | ||
|
3
|
3
01466-S04-900
Hose set
|
01466-S04-900 |
— | ||
|
4
|
4
01468-S04-900
Hose set
|
01468-S04-900 |
— | ||
|
5
|
5
46210-ST7-003
Valve assy.
|
46210-ST7-003 |
— | ||
|
6
|
6
46310-ST7-A00
Pipe comp. a
|
46310-ST7-A00 |
— | ||
|
7
|
7
46320-ST7-A00
Pipe comp. b
|
46320-ST7-A00 |
— | ||
|
8
|
8
46321-ST7-A00
Pipe comp. h
|
46321-ST7-A00 |
— | ||
|
9
|
9
46330-ST0-000
Pipe comp. c
|
46330-ST0-000 |
— | ||
|
10
|
10
46340-ST0-000
Pipe comp. d
|
46340-ST0-000 |
— | ||
|
11
|
11
46360-SR3-A02
Pipe comp. f
|
46360-SR3-A02 |
— | ||
|
12
|
12
46380-SH3-000 Grommet aBRAKE PIPE |
46380-SH3-000 |
US $2.52 |
||
|
13
|
13
46391-SR3-J00 ClampBRAKE PIPE |
46391-SR3-J00 |
US $7.10 |
||
|
14
|
14
46391-SR3-J10 ClampBRAKE PIPE |
46391-SR3-J10 |
US $6.72 |
||
|
15
|
15
46391-SR3-922 Clip bBRAKE PIPE |
46391-SR3-922 |
US $3.43 |
||
|
16
|
16
46391-SR3-931
Clip d
|
46391-SR3-931 |
— | ||
|
17
|
17
46391-SR3-942
Clip e
|
46391-SR3-942 |
— | ||
|
18
|
18
46392-SR3-000 ClipBRAKE PIPE |
46392-SR3-000 |
US $8.73 |
||
|
19
|
19
46392-SR3-910
Clamp
|
46392-SR3-910 |
— | ||
|
20
|
20
46392-SR3-921 ClipBRAKE PIPE |
46392-SR3-921 |
US $6.02 |
||
|
21
|
21
46393-SM4-951 Clip c |
46393-SM4-951 |
US $6.51 |
||
|
22
|
22
46394-SH3-A01 ClipBRAKE PIPE |
46394-SH3-A01 |
US $7.33 |
||
|
23
|
23
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
24
|
24
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
25
|
25
93402-080-160-8 Bolt-washer8X16 |
93402-080-160-8 |
from US $0.67 |
||
|
26
|
26
93402-080-200-8 Bolt-washer8X20 |
93402-080-200-8 |
from US $0.74 |
||
|
27
|
27
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
28
|
28
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
29
|
29
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
30
|
30
93402-080-200-8 Bolt-washer8X20 |
93402-080-200-8 |
from US $0.74 |
||
|
31
|
31
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
32
|
32
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
