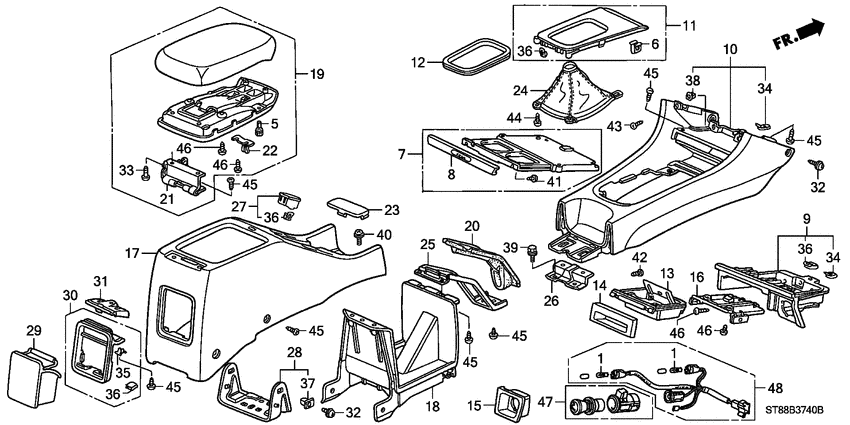

Console (LH) Diagram Honda INTEGRA
- Year
- 1996
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
5
|
5
66418-SA5-000
Stopper
|
66418-SA5-000 |
— | ||
|
6
|
6
77202-SJ5-000 ClipINSTRUMENT PANEL FACE |
77202-SJ5-000 |
US $5.37 |
||
|
7
|
7
77230-ST7-003ZA
Cup holder assy. *nh1l*
|
77230-ST7-003ZA |
— | ||
|
9
|
9
77233-ST7-A00ZA
Panel
|
77233-ST7-A00ZA |
— | ||
|
10
|
10
77291-ST7-A00ZA
Console
|
77291-ST7-A00ZA |
— | ||
|
10
|
10
77291-ST7-A00ZB
Console
|
77291-ST7-A00ZB |
— | ||
|
11
|
11
77293-ST7-A10ZA
Panel
|
77293-ST7-A10ZA |
— | ||
|
11
|
11
77293-ST7-A10ZB
Panel
|
77293-ST7-A10ZB |
— | ||
|
12
|
12
77294-ST7-A00ZA
Lip
|
77294-ST7-A00ZA |
— | ||
|
13
|
13
77710-ST0-003ZA Case comp.FR. ASHTRAY *NH1L* |
77710-ST0-003ZA |
US $36.22 |
||
|
14
|
14
77715-ST7-003ZA PanelFR. ASHTRAY *NH1L* |
77715-ST7-003ZA |
US $10.22 |
||
|
15
|
15
77721-ST7-A00ZA
Protector
|
77721-ST7-A00ZA |
— | ||
|
16
|
16
77730-ST7-003
Holder comp
|
77730-ST7-003 |
— | ||
|
17
|
17
83401-ST0-003ZC
Console
|
83401-ST0-003ZC |
— | ||
|
17
|
17
83401-ST0-003ZD
Console
|
83401-ST0-003ZD |
— | ||
|
18
|
18
83402-ST0-003ZE BoxCONSOLE *NH1L* |
83402-ST0-003ZE |
US $28.67 |
||
|
18
|
18
83402-ST0-003ZD
Box
|
83402-ST0-003ZD |
— | ||
|
19
|
19
83403-ST7-A31ZB
Armrest comp.
|
83403-ST7-A31ZB |
— | ||
|
19
|
19
83403-ST7-A31ZC
Armrest comp.
|
83403-ST7-A31ZC |
— | ||
|
20
|
20
83404-ST0-003
Cover
|
83404-ST0-003 |
— | ||
|
21
|
21
83406-SR4-J00 Hinge compARMREST |
83406-SR4-J00 |
US $19.71 |
||
|
22
|
22
83407-ST0-003 Lock |
83407-ST0-003 |
US $7.70 |
||
|
23
|
23
83412-SK7-000ZA
Cap
|
83412-SK7-000ZA |
— | ||
|
23
|
23
83412-SK7-000ZK
Cap
|
83412-SK7-000ZK |
— | ||
|
25
|
25
83419-ST0-003
Plate
|
83419-ST0-003 |
— | ||
|
26
|
26
83425-ST0-000ZZ
Bracket
|
83425-ST0-000ZZ |
— | ||
|
27
|
27
83442-SM4-000ZF
Lid assy
|
83442-SM4-000ZF |
— | ||
|
27
|
27
83442-SM4-000ZM Lid assySWITCH HOLE *YR164L* |
83442-SM4-000ZM |
US $4.90 |
||
|
28
|
28
83446-ST0-000ZZ
Bracket assy
|
83446-ST0-000ZZ |
— | ||
|
29
|
29
88320-SB3-950ZS
Ashtray assy.
|
88320-SB3-950ZS |
— | ||
|
29
|
29
88320-SB3-950ZK
Ashtray assy.
|
88320-SB3-950ZK |
— | ||
|
30
|
30
88323-ST0-003ZD
Box
|
88323-ST0-003ZD |
— | ||
|
30
|
30
88323-ST0-003ZC
Box
|
88323-ST0-003ZC |
— | ||
|
31
|
31
88324-SB3-950 CoverRR. ASHTRAY |
88324-SB3-950 |
US $4.06 |
||
|
32
|
32
90137-SH3-000 ScrewTAPPING, 4X16 |
90137-SH3-000 |
from US $1.70 |
||
|
33
|
33
90144-SP0-000 ScrewTAPPING, 4X16 (PO) |
90144-SP0-000 |
US $0.98 |
||
|
34
|
34
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
35
|
35
90651-SM4-003
Grommet
|
90651-SM4-003 |
— | ||
|
36
|
36
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
37
|
37
90669-ST0-003
Grommet
|
90669-ST0-003 |
— | ||
|
38
|
38
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
39
|
39
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
40
|
40
93894-060-200-8 Screw-washer6X20 |
93894-060-200-8 |
from US $0.52 |
||
|
42
|
42
93901-32180 ScrewTAPPING, 3X8 |
93901-32180 |
from US $0.37 |
||
|
43
|
43
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
|
45
|
45
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
46
|
46
93913-24280 ScrewTAPPING, 4X12(PO) |
93913-24280 |
from US $0.37 |
||
|
47
|
47
39600-S84-G01
Lighter assy
|
39600-S84-G01 |
— | ||
| replacement | |||||
|
47
|
47
39600-SW3-505 LIGHTER ASSYCIGA |
39600-SW3-505 |
US $21.62 |
||
|
48
|
48
39628-SH2-307
Cord assy
|
39628-SH2-307 |
— | ||
