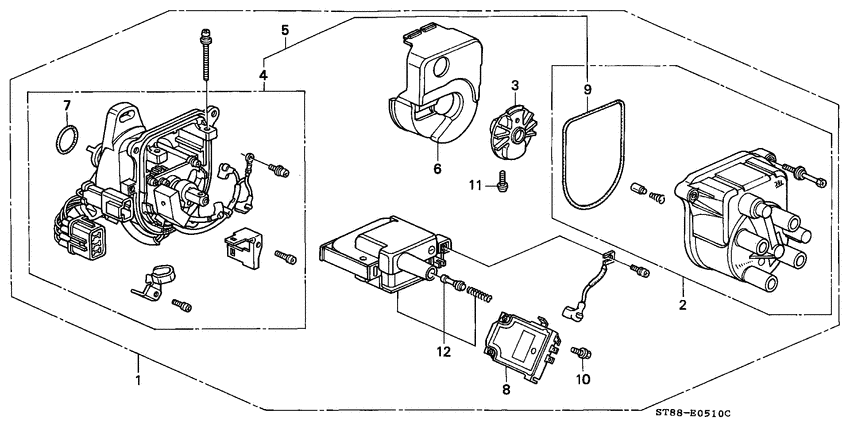

Distributor (TEC) Diagram Honda INTEGRA
- Year
- 1996
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-P75-A03
Distributor assy
|
30100-P75-A03 |
— | ||
|
2
|
2
30102-P54-006 Cap assy. |
30102-P54-006 |
from US $35.36 |
||
|
3
|
3
30103-P08-003
Distributor Rotor Head Assembly
|
30103-P08-003 |
— | ||
|
5
|
5
30105-P75-A01 Housing compDISTRIBUTOR (TEC) |
30105-P75-A01 |
US $414.72 |
||
|
6
|
6
30107-P08-006 CoverLEAK |
30107-P08-006 |
from US $7.70 |
||
|
7
|
7
30110-PA1-732 O-ring26.4X3.1 (TEC) |
30110-PA1-732 |
from US $2.43 |
||
|
8
|
8
30130-P75-006 Igniter unitTEC |
30130-P75-006 |
US $215.04 |
||
|
9
|
9
30132-PT2-006 PackingCAP |
30132-PT2-006 |
from US $5.88 |
||
|
11
|
11
30135-P08-006
Screw-washer
|
30135-P08-006 |
— | ||
| replacement | |||||
|
11
|
11
30135-P73-004 Screw-washer5X12 |
30135-P73-004 |
US $2.44 |
||
|
12
|
12
30510-PT2-006 Ignition Coil |
30510-PT2-006 |
US $133.14 |
||
