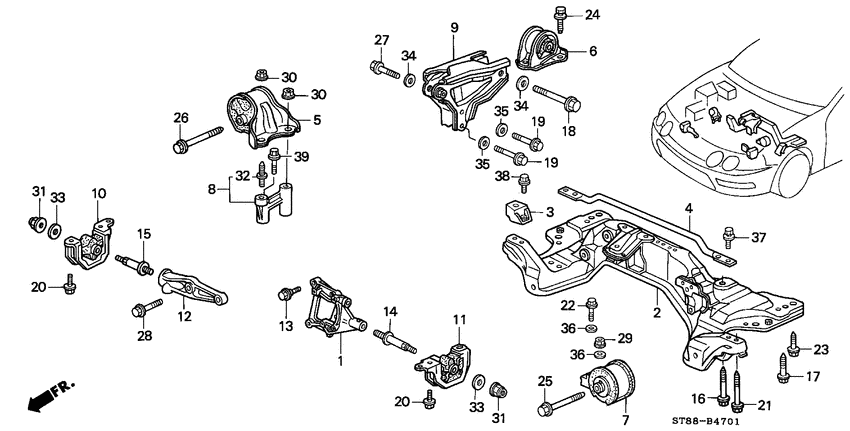

Engine mounts (AT) Diagram Honda INTEGRA
- Year
- 1996
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38930-P30-000 BracketCOMPRESSOR |
38930-P30-000 |
US $140.80 |
||
|
2
|
2
50200-SR3-H50
Beam
|
50200-SR3-H50 |
— | ||
|
3
|
3
50203-SR3-010
Collar
|
50203-SR3-010 |
— | ||
|
4
|
4
50205-ST7-000
Rod
|
50205-ST7-000 |
— | ||
|
5
|
5
50805-SR3-981
Rubber
|
50805-SR3-981 |
— | ||
|
6
|
6
50810-ST0-980 InsulatorRR. ENGINE MOUNTING RUBBER (AT) |
50810-ST0-980 |
from US $74.80 |
||
|
7
|
7
50820-ST7-003
Rubber assy.
|
50820-ST7-003 |
— | ||
|
8
|
8
50825-SR3-980
Bracket
|
50825-SR3-980 |
— | ||
|
9
|
9
50827-ST7-980
Bracket
|
50827-ST7-980 |
— | ||
|
10
|
10
50841-SR3-984 RubberR. FR. STOPPER INSULATOR (AT) |
50841-SR3-984 |
from US $35.37 |
||
|
11
|
11
50842-ST0-N80
Rubber
|
50842-ST0-N80 |
— | ||
|
12
|
12
50843-S04-N80
Bracket
|
50843-S04-N80 |
— | ||
|
13
|
13
95801-100-450-8 BoltFLANGE, 10X45 |
95801-100-450-8 |
from US $0.89 |
||
|
14
|
14
90131-ST7-000 BoltL. FR. STOPPER |
90131-ST7-000 |
US $19 |
||
|
15
|
15
90133-S04-000 BoltR. FR. STOPPER |
90133-S04-000 |
US $9.93 |
||
|
16
|
16
90161-S04-000 BoltFLANGE, 14X100 |
90161-S04-000 |
US $11.88 |
||
|
17
|
17
90162-SR3-000 BoltFLANGE, 14X60 |
90162-SR3-000 |
US $5.77 |
||
|
18
|
18
90165-SM4-020 BoltFLANGE, 12X101 |
90165-SM4-020 |
US $8.14 |
||
|
19
|
19
90165-ST7-000 BoltFLANGE, 14X67 |
90165-ST7-000 |
US $6.53 |
||
|
20
|
20
90166-SR3-000 BoltFLANGE, 10X30 |
90166-SR3-000 |
US $1.95 |
||
|
21
|
21
90167-SR3-000 BoltFLANGE, 14X120 |
90167-SR3-000 |
US $11.84 |
||
|
22
|
22
90167-ST7-000 BoltFLANGE, 10X60 |
90167-ST7-000 |
US $2.10 |
||
|
23
|
23
90168-SR3-000
Bolt
|
90168-SR3-000 |
— | ||
|
24
|
24
90176-S04-000 Bolt-washer10X32.5 |
90176-S04-000 |
US $5.86 |
||
|
25
|
25
90182-SR3-000
Bolt
|
90182-SR3-000 |
— | ||
|
26
|
26
90183-SR3-000
Bolt
|
90183-SR3-000 |
— | ||
|
27
|
27
90186-SL4-000 BoltFLANGE, 12X67 |
90186-SL4-000 |
US $2.73 |
||
|
28
|
28
90190-S04-000 BoltFLANGE, 12X38 |
90190-S04-000 |
from US $3.08 |
||
|
29
|
29
90365-ST7-000 NutFLANGE, 10MM |
90365-ST7-000 |
US $2.28 |
||
|
30
|
30
90371-SR3-000 NutFLANGE, 12MM |
90371-SR3-000 |
US $4.07 |
||
|
31
|
31
90372-SR3-003 NutFLANGE, 12MM |
90372-SR3-003 |
from US $2.18 |
||
|
32
|
32
90380-SR3-000 BoltSTUD, 12X57.6 |
90380-SR3-000 |
US $5.45 |
||
|
33
|
33
90504-SR3-010 WasherFR. STOPPER |
90504-SR3-010 |
US $4.03 |
||
|
34
|
34
90505-SB2-000
Washer
|
90505-SB2-000 |
— | ||
|
35
|
35
90505-SR3-000
Washer
|
90505-SR3-000 |
— | ||
|
36
|
36
91771-SH3-000
Washer
|
91771-SH3-000 |
— | ||
|
37
|
37
93401-100-250-8 Bolt-washer10X25 |
93401-100-250-8 |
US $0.81 |
||
|
38
|
38
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
39
|
39
95701-120-600-8 BoltFLANGE, 12X60 |
95701-120-600-8 |
from US $1.18 |
