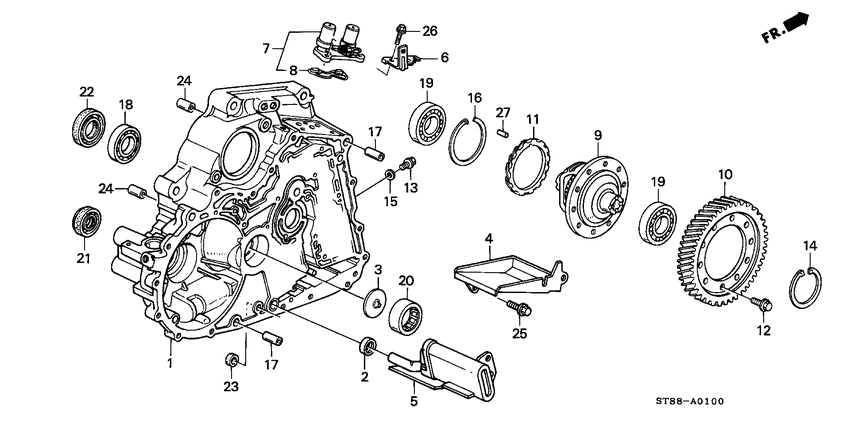

Torque converter housing Diagram Honda INTEGRA
- Year
- 1996
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LS
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21111-P56-020 CaseTORQUE CONVERTER |
21111-P56-020 |
US $344.32 |
||
|
2
|
2
21113-P56-003 Collar compSUCTION PIPE |
21113-P56-003 |
US $4.62 |
||
|
3
|
3
23225-PH0-000 PlateOIL GUIDE |
23225-PH0-000 |
US $3.57 |
||
|
4
|
4
25321-P56-000 PlateOIL LUBRICATION 00000000 - 3027671 |
25321-P56-000 |
US $6.30 |
||
|
4
|
4
25321-P56-010 PlateOIL LUBRICATION 3027672 - |
25321-P56-010 |
US $7 |
||
|
5
|
5
25420-P56-003
Strainer comp.
|
25420-P56-003 |
— | ||
|
6
|
6
28261-P24-J00
Stay
|
28261-P24-J00 |
— | ||
|
7
|
7
28300-P24-J01
Solenoid assy.
|
28300-P24-J01 |
— | ||
|
8
|
8
28320-P24-J01 Filter assyLOCK UP SOLENOID (KEIHIN) |
28320-P24-J01 |
US $20.94 |
||
|
9
|
9
41010-PL4-315 Case comp.DIFFERENTIAL |
41010-PL4-315 |
US $394.13 |
||
|
10
|
10
41233-P4P-000 GearFINAL DRIVEN |
41233-P4P-000 |
US $186.88 |
||
|
11
|
11
41312-PA9-020 GearSPEEDOMETER DRIVE |
41312-PA9-020 |
US $49.02 |
||
|
12
|
12
90003-PA9-003 BoltFLANGE, 10MM |
90003-PA9-003 |
US $2.24 |
||
|
13
|
13
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
14
|
14
90415-689-000 Ring 2SNAP, 80X2.6 |
90415-689-000 |
US $6.44 |
||
|
14
|
14
90417-689-000 Ring 4SNAP, 80X2.8 |
90417-689-000 |
US $6.44 |
||
|
14
|
14
90419-PH8-000 Ring 6SNAP, 80X3.0 |
90419-PH8-000 |
US $5.32 |
||
|
14
|
14
90414-689-000 Ring 1SNAP, 80X2.5 |
90414-689-000 |
US $6.44 |
||
|
14
|
14
90416-689-000 Ring 3SNAP, 80X2.7 |
90416-689-000 |
US $6.44 |
||
|
14
|
14
90418-689-000 Ring 5SNAP, 80X2.9 |
90418-689-000 |
US $6.44 |
||
|
15
|
15
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.70 |
||
|
16
|
16
90608-PA9-000 CirclipEXTERNAL, 90MM |
90608-PA9-000 |
US $6.16 |
||
|
17
|
17
90705-PA9-000 Dowel pin14X25 |
90705-PA9-000 |
US $2.80 |
||
|
18
|
18
91001-591-004
Bearing
|
91001-591-004 |
— | ||
| replacement | |||||
|
18
|
18
91001-PX4-004 BearingBALL, 40X68X9 (KOYO) |
91001-PX4-004 |
US $14.50 |
||
|
19
|
19
91005-PC9-008 BearingBALL (TMB208C) (NTN) |
91005-PC9-008 |
US $20.20 |
||
|
20
|
20
91101-P56-003 BearingNEEDLE, 36X62X18 (NTN) |
91101-P56-003 |
US $29.24 |
||
|
21
|
21
91205-PL3-A02
Oil seal
|
91205-PL3-A02 |
— | ||
| replacement | |||||
|
21
|
21
91205-PL3-A01 Oil seal35X56X8 (ARAI) |
91205-PL3-A01 |
from US $8.95 |
||
|
21
|
21
91205-PL3-A01 Oil seal35X56X8 (ARAI) |
91205-PL3-A01 |
from US $8.95 |
||
|
22
|
22
91207-P0X-004 Oil seal44X68X8 (ARAI) |
91207-P0X-004 |
US $6.84 |
||
|
22
|
22
91207-P0X-003 Oil seal44X68X8 (NOK) |
91207-P0X-003 |
from US $6.96 |
||
|
23
|
23
91209-612-000
Oil seal
|
91209-612-000 |
— | ||
| replacement | |||||
|
23
|
23
91209-612-003 Oil seal12X22X7 (ARAI) |
91209-612-003 |
from US $5.03 |
||
|
24
|
24
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
25
|
25
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
26
|
26
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
27
|
27
96220-50100 Roller5X10 |
96220-50100 |
from US $0.22 |
||
