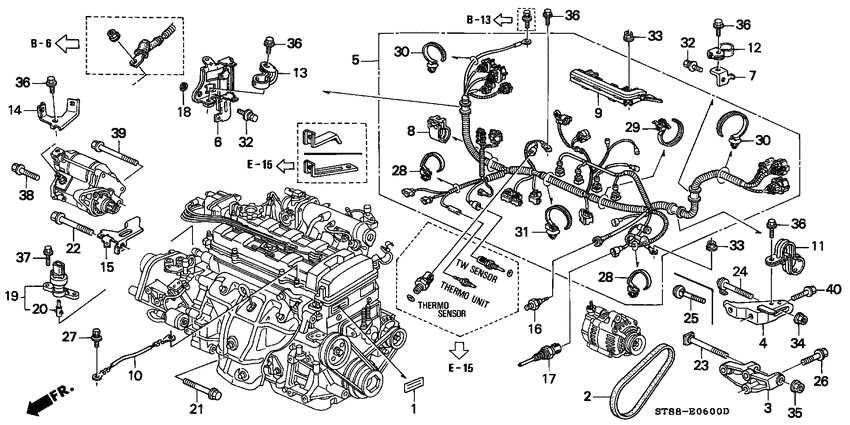

Engine wire harness/clamp (1) Diagram Honda INTEGRA
- Year
- 1995
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LS
- area code
- KD
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17274-P75-A00 LabelSPARK PLUG |
17274-P75-A00 |
US $1.89 |
||
|
2
|
2
31110-P75-004 BeltALTERNATOR (MITSUBOSHI) |
31110-P75-004 |
US $27.78 |
||
|
3
|
3
31112-PR3-000 Bracket comp. aALTERNATOR |
31112-PR3-000 |
US $51.46 |
||
|
4
|
4
31113-P54-000
Stay
|
31113-P54-000 |
— | ||
|
5
|
5
32110-P75-A00
Harness
|
32110-P75-A00 |
— | ||
|
6
|
6
32113-P01-000
Stay comp
|
32113-P01-000 |
— | ||
|
7
|
7
32115-P01-000
Stay
|
32115-P01-000 |
— | ||
|
8
|
8
32118-P72-003 HolderCORRUGATED(DARK GREEN) (19MM) |
32118-P72-003 |
US $3.22 |
||
|
9
|
9
32127-P05-A00
Holder comp
|
32127-P05-A00 |
— | ||
|
10
|
10
32610-ST7-900
Cable
|
32610-ST7-900 |
— | ||
|
11
|
11
32741-P01-000
Clamp a
|
32741-P01-000 |
— | ||
|
12
|
12
32744-P01-000
Clamp d
|
32744-P01-000 |
— | ||
|
13
|
13
32744-P72-A00
Clamp d
|
32744-P72-A00 |
— | ||
|
14
|
14
32746-P72-A00
Stay f
|
32746-P72-A00 |
— | ||
|
15
|
15
32752-P01-000
Stay b
|
32752-P01-000 |
— | ||
|
16
|
16
37240-PT0-023
Switch
2702312 - |
37240-PT0-023 |
— | ||
| replacement | |||||
|
16
|
16
37240-PT0-014 SwitchOIL PRESSURE (TEC) 2702312 - |
37240-PT0-014 |
from US $25.58 |
||
|
16
|
16
37240-PT0-004
Switch
00000000 - 2702541 |
37240-PT0-004 |
— | ||
|
16
|
16
37240-PT0-013
Switch
00000000 - 2702311 |
37240-PT0-013 |
— | ||
|
16
|
16
37240-PT0-014 SwitchOIL PRESSURE (TEC) 2702542 - |
37240-PT0-014 |
from US $25.58 |
||
|
18
|
18
75353-671-000 LockSCREW |
75353-671-000 |
US $1.94 |
||
|
19
|
19
78410-ST7-003 Sensor assySPEED (DENSO) |
78410-ST7-003 |
US $228.89 |
||
|
20
|
20
78411-ST7-003
Joint
|
78411-ST7-003 |
— | ||
|
21
|
21
90050-PG7-000 BoltFLANGE, 12X65 |
90050-PG7-000 |
US $3.18 |
||
|
22
|
22
90051-PE0-000 BoltFLANGE, 12X70 |
90051-PE0-000 |
US $3.42 |
||
|
23
|
23
90057-PG7-003 BoltALTERNATOR |
90057-PG7-003 |
US $5.21 |
||
|
24
|
24
90058-PR4-A01 BoltALTERNATOR UPPER |
90058-PR4-A01 |
US $3.78 |
||
|
26
|
26
90059-PR3-000 BoltKNOCK, 10X35 |
90059-PR3-000 |
US $3.74 |
||
|
27
|
27
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
28
|
28
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
29
|
29
91507-P01-003 Clip bHARNESS BAND (DARK BROWN) (129.4MM) |
91507-P01-003 |
from US $2.25 |
||
|
30
|
30
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
31
|
31
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
32
|
32
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
33
|
33
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
34
|
34
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
35
|
35
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
36
|
36
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
37
|
37
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
38
|
38
95701-100-400-8 BoltFLANGE, 10X40 |
95701-100-400-8 |
from US $0.81 |
||
|
39
|
39
95701-101-050-8 BoltFLANGE, 10X105 |
95701-101-050-8 |
from US $1.63 |
||
|
40
|
40
95801-100-250-8 BoltFLANGE, 10X25 |
95801-100-250-8 |
from US $0.81 |
||
| replacement | |||||
|
40
|
40
95701-100-250-8 BoltFLANGE, 10X25 |
95701-100-250-8 |
from US $0.81 |
||
