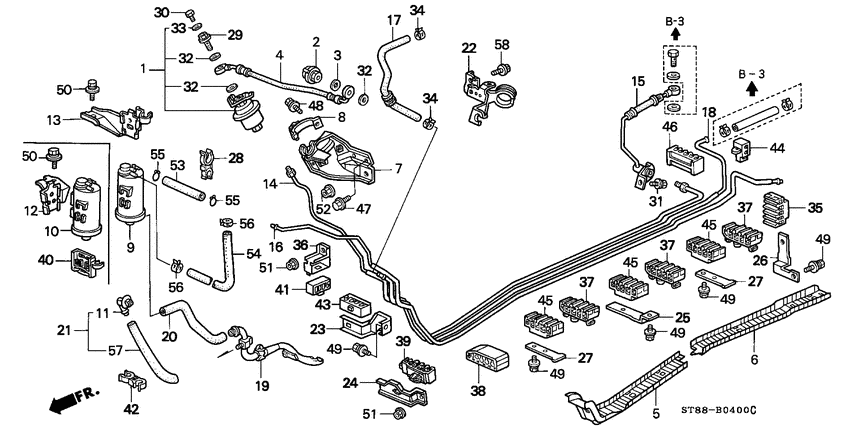

Fuel pipe (-'95) Diagram Honda INTEGRA
- Year
- 1995
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LS
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-ST5-931
Strainer set
|
16010-ST5-931 |
— | ||
|
2
|
2
16680-PE7-661
Damper assy.
|
16680-PE7-661 |
— | ||
| replacement | |||||
|
2
|
2
16680-PCX-003 Damper assy.PULSATION |
16680-PCX-003 |
US $49.37 |
||
|
3
|
3
16705-PD1-003 GasketSILENCER |
16705-PD1-003 |
from US $2.74 |
||
|
4
|
4
16722-P75-003
Hose comp.
|
16722-P75-003 |
— | ||
|
5
|
5
16913-SR3-000
Cover
|
16913-SR3-000 |
— | ||
|
6
|
6
16914-SR4-000
Cover
|
16914-SR4-000 |
— | ||
|
7
|
7
16918-ST7-A30
Stay
|
16918-ST7-A30 |
— | ||
|
8
|
8
16919-ST7-930 BandFUEL STRAINER |
16919-ST7-930 |
US $4.90 |
||
|
9
|
9
17300-SK7-A32
Canister assy
|
17300-SK7-A32 |
— | ||
|
11
|
11
17306-ST7-003 JointCANISTER |
17306-ST7-003 |
US $4.07 |
||
|
13
|
13
17358-ST7-931
Bracket
|
17358-ST7-931 |
— | ||
|
14
|
14
17700-ST8-930
Pipe comp
|
17700-ST8-930 |
— | ||
|
15
|
15
17707-SR3-931 Hose comp.FUEL JOINT |
17707-SR3-931 |
US $108.80 |
||
|
16
|
16
17720-ST8-930
Pipe comp
|
17720-ST8-930 |
— | ||
|
17
|
17
17723-ST0-931
Hose
|
17723-ST0-931 |
— | ||
|
18
|
18
17740-SR4-J30
Pipe comp
|
17740-SR4-J30 |
— | ||
|
19
|
19
17742-SR3-013
Pipe
|
17742-SR3-013 |
— | ||
|
20
|
20
17743-SR3-000
Tube
|
17743-SR3-000 |
— | ||
|
21
|
21
17744-ST7-932
Tube
|
17744-ST7-932 |
— | ||
|
22
|
22
17749-ST7-930
Clamp comp
|
17749-ST7-930 |
— | ||
|
23
|
23
17761-SR3-010
Stay a
|
17761-SR3-010 |
— | ||
|
24
|
24
17762-SR3-J00
Stay b
|
17762-SR3-J00 |
— | ||
|
25
|
25
17763-SR3-000
Stay c
|
17763-SR3-000 |
— | ||
|
26
|
26
17764-SR3-J00
Stay d
|
17764-SR3-J00 |
— | ||
|
27
|
27
17765-SM4-000
Stay e
|
17765-SM4-000 |
— | ||
|
28
|
28
36027-P01-G01 ClampTUBE (7.5MM-11.5MM) |
36027-P01-G01 |
US $2.10 |
||
|
29
|
29
90008-PP4-E02 BoltBANJO, 12MM |
90008-PP4-E02 |
from US $6.51 |
||
|
30
|
30
90009-PP4-E01 BoltSEALING, 6MM |
90009-PP4-E01 |
from US $2.15 |
||
|
31
|
31
90164-SD4-000 Bolt-washer6X16 |
90164-SD4-000 |
US $1.96 |
||
|
32
|
32
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
33
|
33
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
34
|
34
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
35
|
35
91590-SR3-J31 CLAMP J, FUEL PIPE |
91590-SR3-J31 |
US $5.05 |
||
|
36
|
36
91591-SR3-010
Clip A
|
91591-SR3-010 |
— | ||
|
37
|
37
91592-SR3-J31 Clamp hFUEL PIPE (NIFCO) 00000000 - 0S100169 |
91592-SR3-J31 |
US $2.66 |
||
|
37
|
37
91592-SR3-J32 Clamp hFUEL PIPE (SANOU) 0S100170 - |
91592-SR3-J32 |
US $3.50 |
||
|
38
|
38
91593-SR3-J31
Clamp g
|
91593-SR3-J31 |
— | ||
|
39
|
39
91594-SR3-J31 Clamp fFUEL PIPE (NIFCO) 00000000 - 0S100169 |
91594-SR3-J31 |
US $3.22 |
||
|
39
|
39
91594-SR3-J32 Clamp fFUEL PIPE (SANOU) 0S100170 - |
91594-SR3-J32 |
US $5.05 |
||
|
41
|
41
91595-SR3-003
Clamp a
|
91595-SR3-003 |
— | ||
|
42
|
42
91595-ST7-003 ClipFUEL SUB TUBE |
91595-ST7-003 |
US $2.31 |
||
|
43
|
43
91596-SR3-J31 Clamp bFUEL PIPE |
91596-SR3-J31 |
US $5.05 |
||
|
44
|
44
91597-SR3-003
Clamp c
|
91597-SR3-003 |
— | ||
|
45
|
45
91598-SR3-J32 Clamp dFUEL PIPE (SANOU) 0S100170 - |
91598-SR3-J32 |
US $5.54 |
||
|
45
|
45
91598-SR3-J31
Clamp d
00000000 - 0S100169 |
91598-SR3-J31 |
— | ||
| replacement | |||||
|
45
|
45
91598-SR3-J32 Clamp dFUEL PIPE (SANOU) 00000000 - 0S100169 |
91598-SR3-J32 |
US $5.54 |
||
|
46
|
46
91599-SR3-J32 Clamp eFUEL PIPE |
91599-SR3-J32 |
US $3.36 |
||
|
47
|
47
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
48
|
48
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
49
|
49
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
50
|
50
93405-080-160-8 Bolt-washer8X16 |
93405-080-160-8 |
from US $0.74 |
||
|
51
|
51
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
52
|
52
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
53
|
53
17724-ST7-930
Tube
|
17724-ST7-930 |
— | ||
|
54
|
54
95001-554-105-0
Hose
|
95001-554-105-0 |
— | ||
|
55
|
55
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
56
|
56
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
57
|
57
95003-230-476-0 TubeVINYL, 8X12X470 (95003-2 (95003-23001-60M) |
95003-230-476-0 |
US $2.66 |
||
|
58
|
58
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
