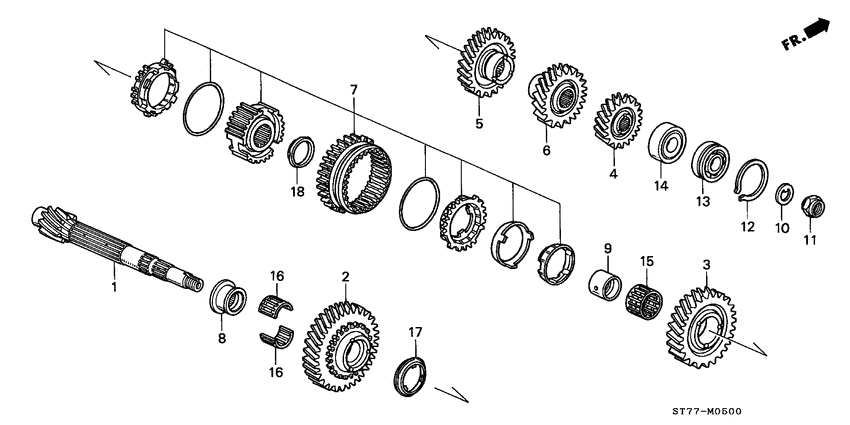

Countershaft Diagram Honda INTEGRA
- Year
- 2000
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23221-P80-E30 Countershaft |
23221-P80-E30 |
US $253.44 |
||
|
2
|
2
23421-P80-E30
Gear
|
23421-P80-E30 |
— | ||
|
3
|
3
23431-P21-000 GearCOUNTERSHAFT SECOND |
23431-P21-000 |
US $104.96 |
||
|
4
|
4
23461-P80-V00
Gear
|
23461-P80-V00 |
— | ||
|
5
|
5
23471-P21-000
Gear
|
23471-P21-000 |
— | ||
|
6
|
6
23481-P80-V00
Gear
|
23481-P80-V00 |
— | ||
|
7
|
7
23521-P21-315 Sleeve setSYNCHRONIZER (1-2) |
23521-P21-315 |
US $320.96 |
||
|
8
|
8
23914-P80-E30
Collar
|
23914-P80-E30 |
— | ||
|
9
|
9
23918-P21-010 CollarDISTANCE, 36.5X42X29 (0.07-0.09) |
23918-P21-010 |
US $18.14 |
||
|
10
|
10
23926-P21-000
Washer
|
23926-P21-000 |
— | ||
|
11
|
11
90202-PH8-000 NutHEX., 23MM |
90202-PH8-000 |
US $8.70 |
||
|
12
|
12
90603-PL3-000 RingSNAP, 52MM |
90603-PL3-000 |
US $2.41 |
||
|
13
|
13
91003-P21-003 BearingBALL, 25X52X14/15 (NTN) |
91003-P21-003 |
from US $13.91 |
||
|
14
|
14
91102-P80-003
Bearing
|
91102-P80-003 |
— | ||
|
15
|
15
91105-P21-003 BearingNEEDLE, 42X47X24 |
91105-P21-003 |
US $9.63 |
||
|
16
|
16
91107-P80-E31 BearingNEEDLE, 42X47X20 |
91107-P80-E31 |
US $8.68 |
||
|
17
|
17
91211-P21-008 DamperFRICTION (LOW) |
91211-P21-008 |
US $14.81 |
||
|
18
|
18
91212-P21-008 DamperFRICTION (SECOND) |
91212-P21-008 |
US $13.19 |
