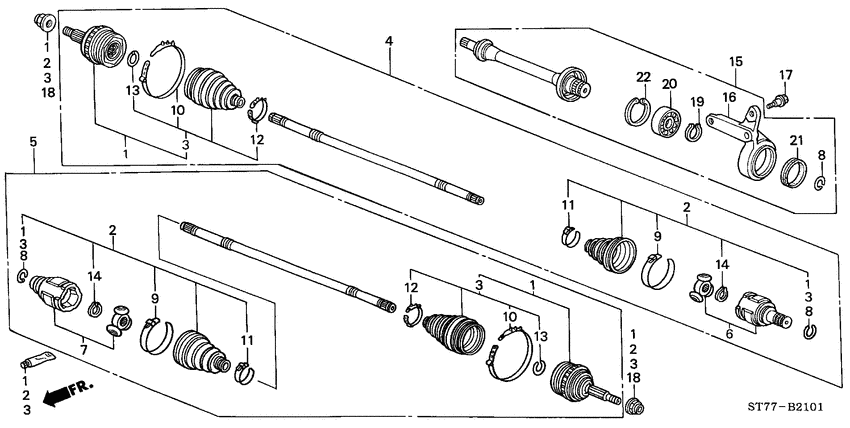

Front driveshaft/ half shaft ('00) Diagram Honda INTEGRA
- Year
- 2000
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44014-ST7-C61
Joint set, OUTBOARD
|
44014-ST7-C61 |
— | ||
| replacement | |||||
|
1
|
1
44014-ST7-C64
Joint set, OUTBOARD
|
44014-ST7-C64 |
— | ||
|
2
|
2
44017-ST7-R50 Boot setINBOARD |
44017-ST7-R50 |
US $81.60 |
||
|
3
|
3
44018-ST7-C62 Boot setOUTBOARD |
44018-ST7-C62 |
US $65.92 |
||
|
4
|
4
44305-S03-950 Driveshaft assy.R. |
44305-S03-950 |
US $753.92 |
||
|
5
|
5
44306-S03-950 Driveshaft assy.L. |
44306-S03-950 |
US $716.80 |
||
|
6
|
6
44310-SH3-J00 Joint compINBOARD |
44310-SH3-J00 |
US $343.04 |
||
|
7
|
7
44310-ST7-900 Joint compINBOARD |
44310-ST7-900 |
US $343.04 |
||
|
8
|
8
44319-S0A-300 Set ring28X2.0 |
44319-S0A-300 |
from US $2.21 |
||
| replacement | |||||
|
8
|
8
44319-S84-300 Set ring28X2.0 |
44319-S84-300 |
US $5.08 |
||
|
9
|
9
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
10
|
10
44327-S04-A02 Band bDRIVESHAFT (OETIKER LIMITED) |
44327-S04-A02 |
US $10.08 |
||
|
10
|
10
44327-S04-A01 Band bDRIVESHAFT (NIPPON HATSUJO) |
44327-S04-A01 |
US $6.86 |
||
|
11
|
11
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
12
|
12
44329-SX0-C02 BandDRIVESHAFT (NIPPON HATSUJO) |
44329-SX0-C02 |
US $6.19 |
||
|
12
|
12
44329-S0K-C01 BandDRIVESHAFT (OETIKER LIMITED) |
44329-S0K-C01 |
US $6.58 |
||
|
13
|
13
44337-SB0-300 Ring bSTOPPER |
44337-SB0-300 |
US $1.75 |
||
|
14
|
14
44338-SB0-300 Circlip26MM |
44338-SB0-300 |
from US $2.24 |
||
|
15
|
15
44500-SR3-J01
Shaft assy
|
44500-SR3-J01 |
— | ||
|
16
|
16
44502-SR3-J00
Support comp
|
44502-SR3-J00 |
— | ||
|
17
|
17
90102-SF1-000 BoltHEX., 10X1.25 |
90102-SF1-000 |
from US $3.67 |
||
|
18
|
18
90305-692-010 Nut |
90305-692-010 |
US $6.84 |
||
|
19
|
19
90681-SR3-000 CirclipEXTERNAL, 33MM |
90681-SR3-000 |
from US $2.66 |
||
|
20
|
20
91057-SR3-008 BearingHALF SHAFT(NTN) |
91057-SR3-008 |
from US $14.65 |
||
|
21
|
21
91260-SR3-003 SealHALF SHAFT OUTER(NOK) |
91260-SR3-003 |
US $8.14 |
||
|
21
|
21
91260-SR3-004 SealHALF SHAFT OUTER (ARAI) |
91260-SR3-004 |
from US $8.14 |
||
|
22
|
22
94520-55000 CirclipINTERNAL, 55MM |
94520-55000 |
from US $1.48 |
||
