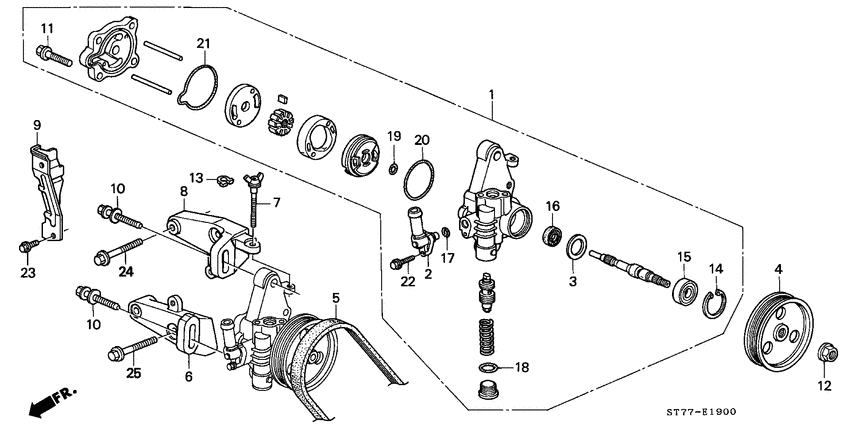

P.s. pump/bracket Diagram Honda INTEGRA
- Year
- 2000
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-P72-003
Pump sub assy
|
56110-P72-003 |
— | ||
|
2
|
2
56123-P2A-003 JointIN. |
56123-P2A-003 |
US $25.47 |
||
|
3
|
3
56167-P2A-003 SpacerPUMP SEAL |
56167-P2A-003 |
US $1.91 |
||
|
4
|
4
56483-P72-003
Pulley comp
|
56483-P72-003 |
— | ||
|
5
|
5
56992-P72-004 BeltPOWER STEERING PUMP (MITSUBOSHI) |
56992-P72-004 |
US $26.88 |
||
|
6
|
6
56994-P73-000
Bracket
|
56994-P73-000 |
— | ||
|
7
|
7
56996-P01-000 BoltPOWER STEERING PUMP ADJUSTING WING |
56996-P01-000 |
US $4.06 |
||
|
8
|
8
56997-P73-000
Bracket
|
56997-P73-000 |
— | ||
|
9
|
9
56999-P73-000
Insulator
|
56999-P73-000 |
— | ||
|
10
|
10
90004-P73-003
Bolt
|
90004-P73-003 |
— | ||
|
11
|
11
90105-S50-003 BoltFLANGE, 8X28 |
90105-S50-003 |
US $3.26 |
||
|
12
|
12
90305-PAA-A01 NutPOWER STEERING PULLEY |
90305-PAA-A01 |
from US $2.44 |
||
|
13
|
13
90601-P01-003 ClipADJUST BOLT |
90601-P01-003 |
US $1.54 |
||
|
14
|
14
90693-P2A-003 CirclipINTERNAL, 40MM |
90693-P2A-003 |
US $2.59 |
||
|
15
|
15
91048-P2A-003 BearingRADIAL BALL, 17X40X12 |
91048-P2A-003 |
from US $9.90 |
||
|
16
|
16
91249-P2A-003 SealPOWER STEERING PUMP |
91249-P2A-003 |
from US $4.90 |
||
|
17
|
17
91345-PAA-A01
O-ring
|
91345-PAA-A01 |
— | ||
| replacement | |||||
|
17
|
17
91345-PY3-000 O-ring13.0X1.9 |
91345-PY3-000 |
from US $1.19 |
||
|
18
|
18
91347-PAA-A01 O-ring16.7X1.8 |
91347-PAA-A01 |
from US $1.46 |
||
|
19
|
19
91347-P2A-003 O-ring15.2X2.4 |
91347-P2A-003 |
from US $1.47 |
||
|
20
|
20
91348-P2A-003 O-ring51.0X2.4 |
91348-P2A-003 |
from US $3.94 |
||
|
21
|
21
91349-P2A-003 SealPOWER STEERING PUMP COVER |
91349-P2A-003 |
from US $3.98 |
||
|
22
|
22
91350-P8C-A01 BoltFLANGE, 6X20 |
91350-P8C-A01 |
US $1.72 |
||
|
23
|
23
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
23
|
23
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
24
|
24
95701-100-450-8 BoltFLANGE, 10X45 |
95701-100-450-8 |
from US $0.89 |
||
|
25
|
25
95801-100-400-8 BoltFLANGE, 10X40 |
95801-100-400-8 |
from US $0.81 |
||
