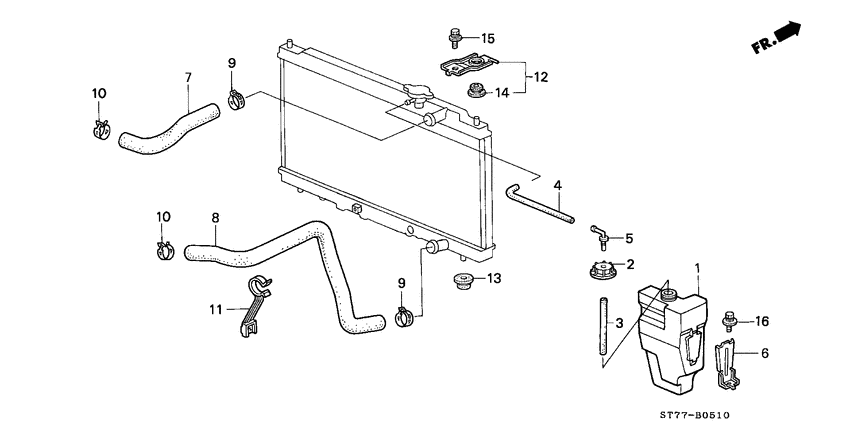

Radiator hose Diagram Honda INTEGRA
- Year
- 2000
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19101-P73-G00
Tank
|
19101-P73-G00 |
— | ||
|
2
|
2
19102-PM5-A00 CapRESERVE TANK |
19102-PM5-A00 |
from US $3.98 |
||
|
3
|
3
19103-PT0-000 HoseRESERVE TANK |
19103-PT0-000 |
US $3.71 |
||
|
4
|
4
19104-P08-000 TubeRESERVE TANK |
19104-P08-000 |
from US $5.44 |
||
|
5
|
5
19106-PA0-020 JointRESERVE TANK |
19106-PA0-020 |
from US $4.20 |
||
|
6
|
6
19115-P73-G00
Bracket
|
19115-P73-G00 |
— | ||
|
7
|
7
19501-P73-010 HoseWATER UPPER |
19501-P73-010 |
US $36.45 |
||
|
8
|
8
19502-P72-000 HoseWATER LOWER |
19502-P72-000 |
US $51 |
||
|
9
|
9
19511-PR3-003
Clip, WATER HOSE (CHUO SPRING)
|
19511-PR3-003 |
— | ||
| replacement | |||||
|
9
|
9
19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) |
19511-PH7-003 |
from US $3.94 |
||
|
10
|
10
19511-P30-003
Clip, WATER HOSE (CHUO SPRING)
|
19511-P30-003 |
— | ||
| replacement | |||||
|
10
|
10
19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) |
19511-PH7-003 |
from US $3.94 |
||
|
11
|
11
19519-P54-003 ClampWATER HOSE |
19519-P54-003 |
US $8.63 |
||
|
12
|
12
74171-SK7-000 BracketRADIATOR MOUNT UPPER |
74171-SK7-000 |
US $7.28 |
||
|
13
|
13
74172-SM4-000 CushionRADIATOR MOUNTING LOWER |
74172-SM4-000 |
US $14.69 |
||
|
14
|
14
74173-SJ4-000 CushionRADIATOR MOUNTING UPPER |
74173-SJ4-000 |
from US $3.26 |
||
|
15
|
15
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
16
|
16
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
