	Description	OEM Part #	Price
1	1 80050-SP0-000 Label AIR CONDITIONER CAUTION (HFC134A)	80050-SP0-000	from US $1.35
2	2 80311-ST7-A02 Hose comp. SUCTION	80311-ST7-A02	US $126.72
3	3 80315-ST7-003 Hose comp. DISCHARGE	80315-ST7-003	US $207.36
4	4 80321-ST7-A02 Pipe a SUCTION	80321-ST7-A02	US $104.96
5	5 80322-ST7-A02 Pipe b	80322-ST7-A02	—
6	6 80331-ST7-E01 Pipe CONDENSER	80331-ST7-E01	US $126.72
7	7 80341-ST7-G01 Pipe a	80341-ST7-G01	—
8	8 80342-ST7-A02 Pipe b	80342-ST7-A02	—
9	9 80343-ST7-A01 Pipe c	80343-ST7-A01	—
10	10 80351-ST7-003 Receiver comp	80351-ST7-003	—
11	11 80352-SR3-000 Bracket	80352-SR3-000	—
12	12 80361-ST7-A00 Stay	80361-ST7-A00	—
13	13 80363-ST7-A00 Clamp DISCHARGE HOSE	80363-ST7-A00	US $5.32
14	14 80364-ST7-A00 Stay	80364-ST7-A00	—
15	15 80365-SH3-A00 Clamp SUCTION PIPE	80365-SH3-A00	US $3.99
16	16 80367-SR3-A00 Clamp b SUCTION PIPE	80367-SR3-A00	US $13.35
17	17 80440-SS0-901 Switch	80440-SS0-901	—
18	18 80865-SL0-003 Cap VALVE (H)	80865-SL0-003	US $5.14
19	19 80866-SL0-003 Cap VALVE(L)	80866-SL0-003	US $5.14
20	20 80871-ST7-000 O-ring 5/8"	80871-ST7-000	from US $2.69
21	21 80872-ST7-000 O-ring 1/2"	80872-ST7-000	from US $2.52
22	22 80873-ST7-000 O-ring 8MM	80873-ST7-000	from US $2.74
23	23 91548-SR3-003 Clip 8MM	91548-SR3-003	US $1.26
24	24 93403-060-120-8 Bolt-washer 6X12	93403-060-120-8	from US $0.45
25	25 93403-060-200-8 Bolt-washer 6X20	93403-060-200-8	from US $0.62
26	26 94050-06080 Nut FLANGE, 6MM	94050-06080	from US $0.52
27	27 95701-060-250-8 Bolt FLANGE, 6X25	95701-060-250-8	from US $0.59
28	28 95701-060-350-8 Bolt FLANGE, 6X35	95701-060-350-8	from US $0.59

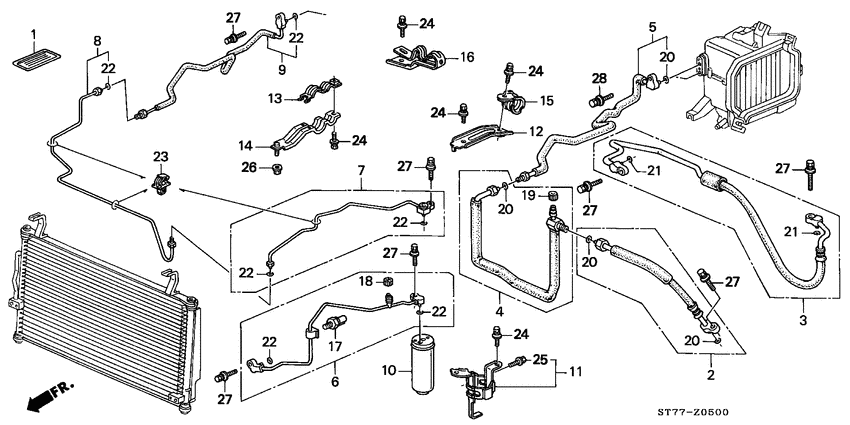

Air conditioner (HOSES/PIPES; LH) Diagram Honda INTEGRA General 7058942-544480

Air conditioner (HOSES/PIPES; LH) Diagram Honda INTEGRA General 7058942-544480
