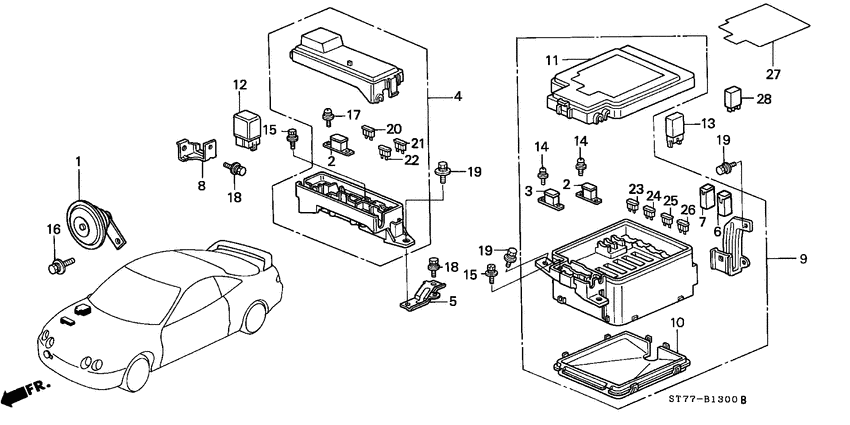

Control unit (ENGINE ROOM; LH) Diagram Honda INTEGRA
- Year
- 2000
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KG
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38150-ST7-G01
Horn assy
|
38150-ST7-G01 |
— | ||
|
2
|
2
38212-SM4-003 FuseBLOCK (40A) |
38212-SM4-003 |
US $5.18 |
||
|
3
|
3
38218-SM4-003 FuseBLOCK (100A) |
38218-SM4-003 |
from US $8.47 |
||
|
4
|
4
38230-ST5-003
Box assy
|
38230-ST5-003 |
— | ||
|
5
|
5
38231-ST7-A00
Bracket a
|
38231-ST7-A00 |
— | ||
|
6
|
6
38231-S04-003 FuseBLOCK (30A) |
38231-S04-003 |
US $2.31 |
||
|
7
|
7
38231-S04-961 FuseBLOCK (40A) |
38231-S04-961 |
US $2.31 |
||
|
8
|
8
38232-ST7-A00
Bracket b
|
38232-ST7-A00 |
— | ||
|
9
|
9
38250-ST7-G01
Box assy
|
38250-ST7-G01 |
— | ||
|
10
|
10
38252-S01-003 CoverLOWER |
38252-S01-003 |
US $12.32 |
||
|
11
|
11
38254-ST7-G01
Cover
|
38254-ST7-G01 |
— | ||
|
12
|
12
39792-SP0-014 Relay assyPOWER (4P) (MITSUBA) (12V NO) |
39792-SP0-014 |
US $45.93 |
||
|
13
|
13
39794-SL0-004 Relay assyPOWER(4P) (MITSUBA)(RC-2225)(BLACK) |
39794-SL0-004 |
US $16.51 |
||
|
13
|
13
39794-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7250) |
39794-SE0-003 |
US $18.43 |
||
|
14
|
14
90129-SP0-000 Screw-washer5X12 |
90129-SP0-000 |
US $1.26 |
||
|
15
|
15
90130-SR3-003 Bolt5X13 |
90130-SR3-003 |
US $1.26 |
||
|
16
|
16
90150-S84-003 BoltEARTH, 8X16 |
90150-S84-003 |
US $1.88 |
||
|
17
|
17
90153-SA5-900 Screw-washer5X9 |
90153-SA5-900 |
US $2.80 |
||
|
18
|
18
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
19
|
19
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
20
|
20
98200-31000 FuseBLADE (10A) |
98200-31000 |
from US $0.52 |
||
|
21
|
21
98200-31500 FuseBLADE (15A) |
98200-31500 |
from US $0.52 |
||
|
22
|
22
98200-32000 FuseBLADE (20A) |
98200-32000 |
from US $0.52 |
||
|
23
|
23
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
24
|
24
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
25
|
25
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
26
|
26
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
||
|
28
|
28
39794-S04-003 Relay assyPOWER (4P) (MICRO ISO) (MITSUBA) |
39794-S04-003 |
US $15.23 |
||
|
28
|
28
39794-S04-004
Relay assy
|
39794-S04-004 |
— |
