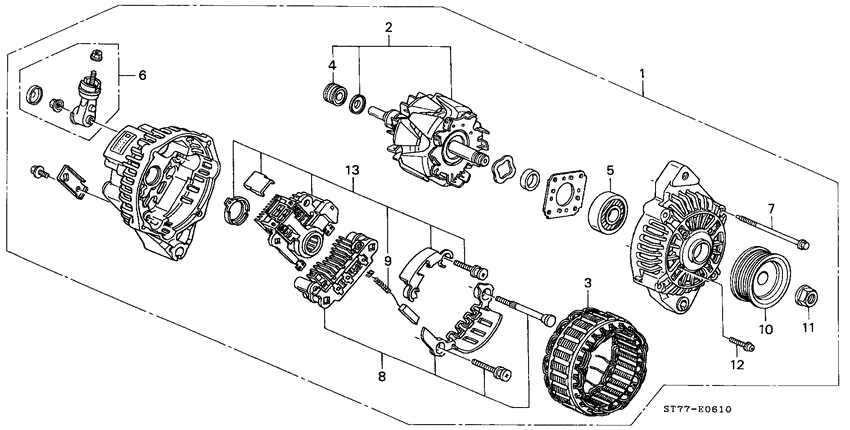

Alternator (MITSUBISHI) Diagram Honda INTEGRA
- Year
- 1999
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-P73-G01
Alternator assy
|
31100-P73-G01 |
— | ||
|
2
|
2
31101-P73-A01
Rotor assy.
|
31101-P73-A01 |
— | ||
|
3
|
3
31102-P73-A01
Stator
|
31102-P73-A01 |
— | ||
|
4
|
4
31111-P08-J02 BearingRR. GENERATOR |
31111-P08-J02 |
from US $13.17 |
||
|
5
|
5
31114-P01-014 BearingFR. GENERATOR |
31114-P01-014 |
US $12.60 |
||
|
6
|
6
31123-P08-J02
Terminal set
|
31123-P08-J02 |
— | ||
|
7
|
7
31125-P08-J02 BoltFLANGE |
31125-P08-J02 |
from US $2.38 |
||
|
8
|
8
31127-P08-J02
Rectifier assy.
|
31127-P08-J02 |
— | ||
|
9
|
9
31140-P64-902 Brush set |
31140-P64-902 |
from US $15.23 |
||
|
10
|
10
31141-P2E-A01
Pulley
|
31141-P2E-A01 |
— | ||
|
11
|
11
31142-P08-J02 Nut |
31142-P08-J02 |
US $1.68 |
||
|
12
|
12
31146-PE0-004 Screw |
31146-PE0-004 |
from US $1.47 |
||
|
13
|
13
31150-P2F-C03
Regulator assy
|
31150-P2F-C03 |
— |
