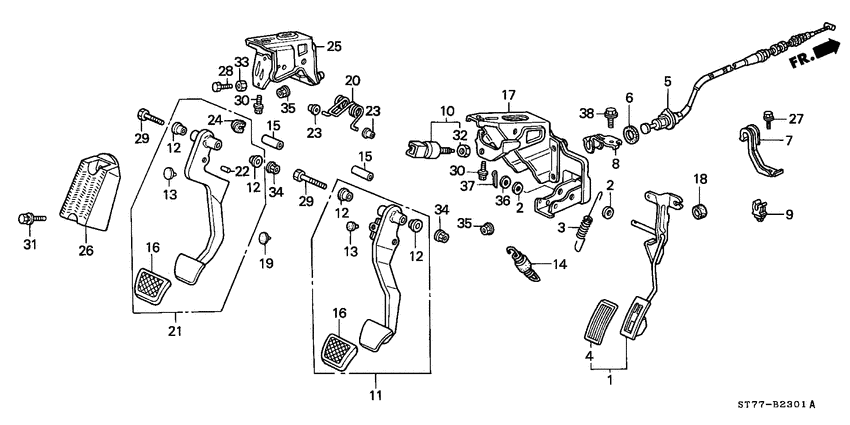

Pedal (RH) Diagram Honda INTEGRA
- Year
- 1999
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-SR3-000
Pedal comp
|
17800-SR3-000 |
— | ||
|
2
|
2
17812-SA7-010 WasherACCELERATOR PEDAL |
17812-SA7-010 |
from US $2 |
||
|
3
|
3
17814-SR3-000
Spring
|
17814-SR3-000 |
— | ||
|
4
|
4
17816-SK7-000 CoverACCELERATOR PEDAL |
17816-SK7-000 |
US $10.51 |
||
|
5
|
5
17910-ST7-E01
Wire
|
17910-ST7-E01 |
— | ||
|
6
|
6
17921-SA4-730 SealTHROTTLE CABLE |
17921-SA4-730 |
US $5.86 |
||
|
7
|
7
17924-ST7-000
Clamp
|
17924-ST7-000 |
— | ||
|
8
|
8
17934-SR3-010
Stay
|
17934-SR3-010 |
— | ||
|
9
|
9
17938-SE0-941 ClipTHROTTLE WIRE |
17938-SE0-941 |
from US $1.54 |
||
|
10
|
10
35350-SE0-A03 Switch assySTOP (TEC) |
35350-SE0-A03 |
US $32.31 |
||
|
11
|
11
46500-SR3-N00
Pedal assy
|
46500-SR3-N00 |
— | ||
|
12
|
12
46504-ST5-300 BushPEDAL |
46504-ST5-300 |
US $3.70 |
||
|
13
|
13
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.38 |
||
|
14
|
14
46530-SR3-000 Spring assyPEDAL RETURN |
46530-SR3-000 |
US $4.29 |
||
|
15
|
15
46535-SM4-000 CollarPEDAL |
46535-SM4-000 |
US $5.18 |
||
|
16
|
16
46545-SH3-000 CoverPEDAL |
46545-SH3-000 |
US $10.95 |
||
|
17
|
17
46590-SR3-N01
Bracket
|
46590-SR3-N01 |
— | ||
|
18
|
18
46904-SM4-300 PadACCELERATOR STOPPER |
46904-SM4-300 |
US $3.08 |
||
|
19
|
19
46905-SK7-000
Stopper
|
46905-SK7-000 |
— | ||
|
20
|
20
46907-SR3-010
Spring
|
46907-SR3-010 |
— | ||
|
21
|
21
46910-SR3-J00
Pedal comp
|
46910-SR3-J00 |
— | ||
|
22
|
22
46911-SD4-930 BushPEDAL PIN |
46911-SD4-930 |
from US $2.12 |
||
|
23
|
23
46981-SR3-930 Bush aCLUTCH ASSISTANT |
46981-SR3-930 |
US $2.24 |
||
|
24
|
24
46982-SR3-930 Bush bCLUTCH ASSISTANT |
46982-SR3-930 |
US $2.94 |
||
|
25
|
25
46990-SR3-000
Bracket
|
46990-SR3-000 |
— | ||
|
26
|
26
46991-SR3-010
Bracket
|
46991-SR3-010 |
— | ||
|
27
|
27
90003-PG7-660
Bolt-washer
|
90003-PG7-660 |
— | ||
| replacement | |||||
|
27
|
27
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
28
|
28
92201-10025-0H BoltHEX., 10X25 |
92201-10025-0H |
US $0.74 |
||
|
29
|
29
92201-10070-0J BoltHEX., 10X70 |
92201-10070-0J |
US $1.04 |
||
|
30
|
30
93404-080-160-8 Bolt-washer8X16 |
93404-080-160-8 |
from US $0.67 |
||
|
31
|
31
93405-060-200-7 Bolt-washer6X20 |
93405-060-200-7 |
from US $0.59 |
||
|
32
|
32
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
33
|
33
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
34
|
34
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
35
|
35
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
36
|
36
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
37
|
37
94201-25180 PinSPLIT, 2.5X18 |
94201-25180 |
from US $0.37 |
||
|
38
|
38
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
