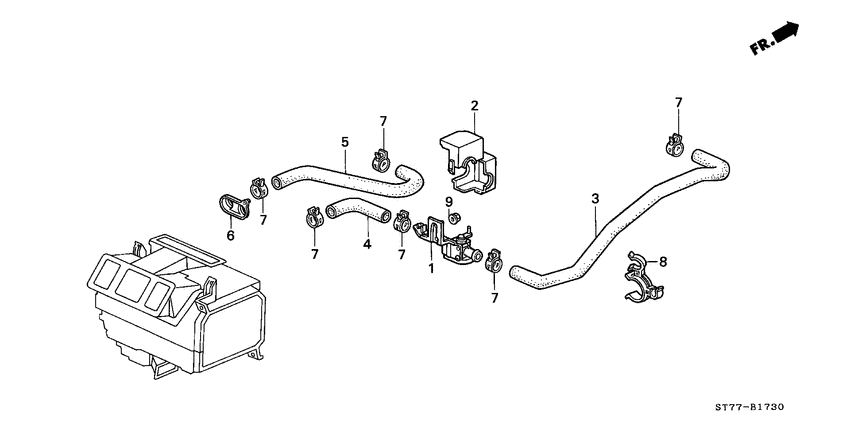

Water valve Diagram Honda INTEGRA
- Year
- 1999
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79710-ST7-003
Valve assy.
|
79710-ST7-003 |
— | ||
|
2
|
2
79715-ST7-000
Cover
|
79715-ST7-000 |
— | ||
|
3
|
3
79721-ST7-000
Hose a
|
79721-ST7-000 |
— | ||
|
4
|
4
79722-ST7-000
Hose b
|
79722-ST7-000 |
— | ||
|
5
|
5
79725-SR3-J30 HoseWATER OUTLET |
79725-SR3-J30 |
US $14.81 |
||
|
6
|
6
79731-SR3-000
Grommet
|
79731-SR3-000 |
— | ||
|
7
|
7
91405-PK1-003
Clip, WATER HOSE, 24MM
|
91405-PK1-003 |
— | ||
| replacement | |||||
|
7
|
7
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
8
|
8
91553-SK7-003
Clamp
|
91553-SK7-003 |
— | ||
|
9
|
9
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
