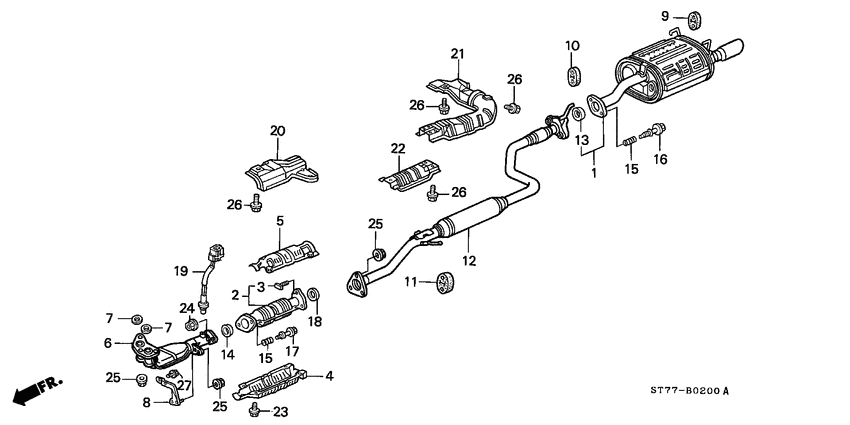

Exhaust pipe Diagram Honda INTEGRA
- Year
- 1999
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KG
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18030-ST7-Z61
Silencer set
|
18030-ST7-Z61 |
— | ||
|
2
|
2
18160-P73-G00
Converter comp.
|
18160-P73-G00 |
— | ||
|
3
|
3
18176-P08-003 BoltCONVERTER |
18176-P08-003 |
US $7 |
||
|
4
|
4
18181-PR4-A01 CoverLOWER |
18181-PR4-A01 |
US $31.23 |
||
|
5
|
5
18182-PR4-A01
Cover
|
18182-PR4-A01 |
— | ||
|
6
|
6
18210-ST7-G61
Pipe a
|
18210-ST7-G61 |
— | ||
|
7
|
7
18212-SB2-961 GasketEX. PIPE (ISHINO) |
18212-SB2-961 |
from US $6.51 |
||
|
8
|
8
18213-ST7-A60
Stay
|
18213-ST7-A60 |
— | ||
|
9
|
9
18215-SA0-000 RubberSILENCER MOUNTING (74X45X22) |
18215-SA0-000 |
from US $9.44 |
||
|
10
|
10
18215-SV4-A70 RubberEX. MOUNTING |
18215-SV4-A70 |
US $6.58 |
||
|
11
|
11
18215-671-000 RubberSILENCER MOUNTING (74X53X22) |
18215-671-000 |
from US $9.92 |
||
|
12
|
12
18220-ST7-R60
Pipe b
|
18220-ST7-R60 |
— | ||
|
13
|
13
18229-SH3-X30 GasketEX. FLEXIBLE (50.8MM-64MM) |
18229-SH3-X30 |
US $22.02 |
||
|
14
|
14
18229-S04-X12 GasketEX. FLEXIBLE (50.8MM-64MM) |
18229-S04-X12 |
from US $24.75 |
||
|
15
|
15
18230-SV4-000 SpringFLEXIBLE JOINT |
18230-SV4-000 |
from US $3.55 |
||
|
16
|
16
18231-SR3-A22 Bolt bFLEXIBLE JOINT |
18231-SR3-A22 |
from US $9.36 |
||
|
17
|
17
18231-SR3-J01 Bolt aFLEXIBLE JOINT |
18231-SR3-J01 |
from US $9.36 |
||
|
18
|
18
18393-SH3-S00 GasketPRE-CHAMBER (52.5MM-53.5MM) |
18393-SH3-S00 |
from US $7.33 |
||
|
19
|
19
36531-P73-G01
Sensor
|
36531-P73-G01 |
— | ||
|
20
|
20
74601-SR3-A00
Plate
|
74601-SR3-A00 |
— | ||
|
21
|
21
74651-SR3-000 PlateFUEL TANK BAFFLE |
74651-SR3-000 |
US $52.50 |
||
|
22
|
22
74653-SR3-000 Sensor assyVENT PRESSURE |
74653-SR3-000 |
US $22.30 |
||
|
23
|
23
90023-PK1-000
Bolt
|
90023-PK1-000 |
— | ||
| replacement | |||||
|
23
|
23
90023-PR7-A01 BOLT, FLANGE (6X12)6X12 (IWATA BOLT) |
90023-PR7-A01 |
US $2.96 |
||
|
24
|
24
90115-659-003 NutSELF-LOCK, 8MM (CLINCH) |
90115-659-003 |
from US $1.05 |
||
|
25
|
25
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
26
|
26
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
27
|
27
95801-100-200-8 BoltFLANGE, 10X20 |
95801-100-200-8 |
US $0.74 |
||
