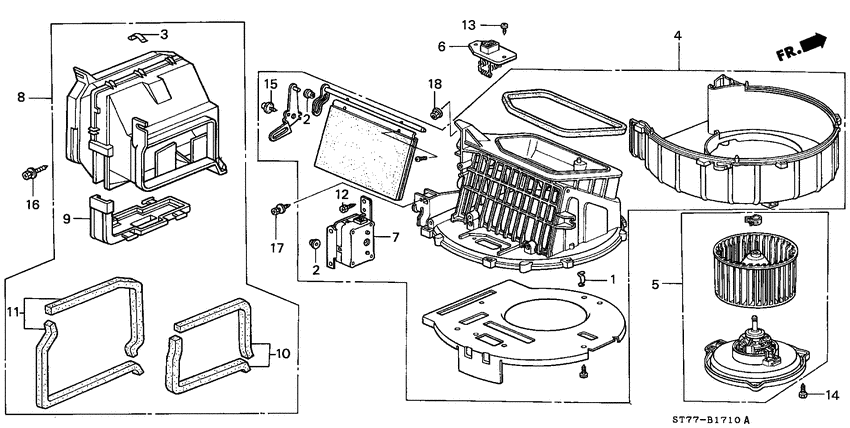

Heater blower (LH) Diagram Honda INTEGRA
- Year
- 1999
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KG
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39246-671-003 ClampCASE HOLD |
39246-671-003 |
US $2.66 |
||
|
2
|
2
79192-SR3-003 BushLINK |
79192-SR3-003 |
US $1.47 |
||
|
3
|
3
79194-ST3-E01
Clip
|
79194-ST3-E01 |
— | ||
|
4
|
4
79305-SR3-A01 Blower sub assy.DENSO |
79305-SR3-A01 |
US $198.40 |
||
|
5
|
5
79310-SR3-A01 Motor assy.BLOWER (DENSO) |
79310-SR3-A01 |
US $302.08 |
||
|
6
|
6
79330-SR3-A01 ResistorBLOWER |
79330-SR3-A01 |
from US $22.27 |
||
|
7
|
7
79350-SR3-A01
Motor assy.
|
79350-SR3-A01 |
— | ||
|
8
|
8
79810-ST3-G01
Duct
|
79810-ST3-G01 |
— | ||
|
9
|
9
79813-ST3-E01
Cover
|
79813-ST3-E01 |
— | ||
|
10
|
10
80286-ST3-S01
Seal
|
80286-ST3-S01 |
— | ||
|
11
|
11
80287-ST3-S01
Seal
|
80287-ST3-S01 |
— | ||
|
12
|
12
90121-SR3-003 ScrewTAPPING, 5X12 |
90121-SR3-003 |
US $1.26 |
||
|
13
|
13
90123-SR3-003 ScrewTAPPING, 4X16 |
90123-SR3-003 |
US $1.54 |
||
|
14
|
14
90132-SR3-003 ScrewTAPPING, 5X16 |
90132-SR3-003 |
from US $1.12 |
||
|
15
|
15
90133-SR3-003 Screw-washer4X16 |
90133-SR3-003 |
from US $1.12 |
||
|
16
|
16
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
17
|
17
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
18
|
18
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
from US $1.47 |
