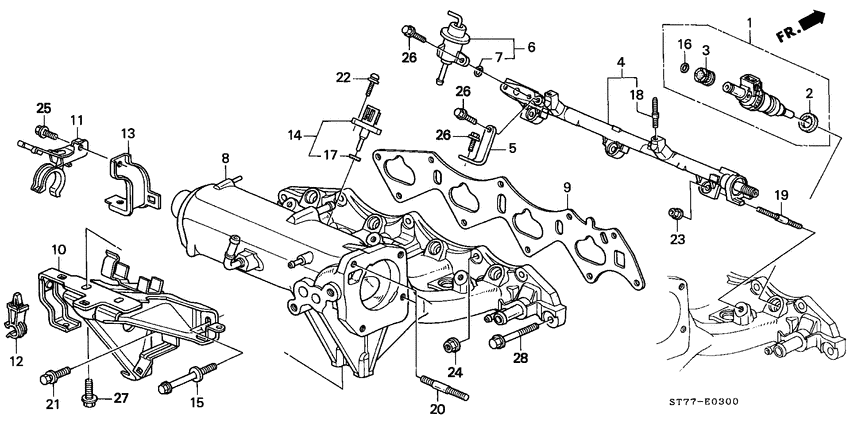

Intake manifold Diagram Honda INTEGRA
- Year
- 1999
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KG
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06164-P2J-000 INJECTOR (1pc), packing set1pc |
06164-P2J-000 |
US $201.28 |
||
|
2
|
2
16472-PD6-000 Seal ringINJECTOR (OTSUKA) |
16472-PD6-000 |
US $7.33 |
||
|
3
|
3
16473-PD6-000 Cushion ringINJECTOR (OTSUKA) |
16473-PD6-000 |
from US $5.33 |
||
| replacement | |||||
|
3
|
3
16473-P10-A01 Cushion ringINJECTOR (NOK) |
16473-P10-A01 |
US $10.10 |
||
|
4
|
4
16620-P72-010
Pipe assy.
|
16620-P72-010 |
— | ||
|
5
|
5
16622-P73-000
Stay
|
16622-P73-000 |
— | ||
|
6
|
6
16740-P73-003
Regulator assy
|
16740-P73-003 |
— | ||
|
7
|
7
16741-PG7-005 O-ringPRESSURE REGULATOR |
16741-PG7-005 |
from US $2.22 |
||
|
8
|
8
17100-P73-A00
Manifold comp
|
17100-P73-A00 |
— | ||
|
9
|
9
17105-P73-A01
Gasket
|
17105-P73-A01 |
— | ||
|
10
|
10
17132-P73-000
Stay comp
|
17132-P73-000 |
— | ||
|
11
|
11
53776-ST7-R00
Clamp b
|
53776-ST7-R00 |
— | ||
|
12
|
12
19509-PR3-003
Clamp
|
19509-PR3-003 |
— | ||
|
13
|
13
32754-P30-000
Stay d
|
32754-P30-000 |
— | ||
|
14
|
14
37880-PE2-013 Sensor assyAIR TEMP |
37880-PE2-013 |
US $54.55 |
||
|
15
|
15
90033-P2T-005
Bolt
|
90033-P2T-005 |
— | ||
|
16
|
16
91301-PM7-003 O-ring7.3X2.2 (ARAI) |
91301-PM7-003 |
US $4.39 |
||
| replacements | |||||
|
16
|
16
91301-P2F-A01 O-ring7.3X2.2 (NOK) |
91301-P2F-A01 |
US $5.39 |
||
|
16
|
16
16074-ZY3-000 O-ring |
16074-ZY3-000 |
from US $4.14 |
||
|
17
|
17
91303-PD1-910
O-ring
|
91303-PD1-910 |
— | ||
| replacement | |||||
|
17
|
17
91303-PK2-005 O-ring (7.5X1.5)7.5X1.5 |
91303-PK2-005 |
from US $1.63 |
||
|
18
|
18
92900-06018-1B BoltSTUD, 6X18 |
92900-06018-1B |
from US $0.59 |
||
|
19
|
19
92900-06022-0B BoltSTUD, 6X22 |
92900-06022-0B |
from US $0.59 |
||
|
20
|
20
92900-08035-1B BoltSTUD, 8X35 |
92900-08035-1B |
US $0.81 |
||
|
21
|
21
93406-080-160-8 Bolt-washer8X16 |
93406-080-160-8 |
from US $0.67 |
||
|
22
|
22
93893-050-160-8 Screw-washer5X16 |
93893-050-160-8 |
from US $0.55 |
||
|
23
|
23
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
24
|
24
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
25
|
25
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
26
|
26
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
27
|
27
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
28
|
28
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
||
