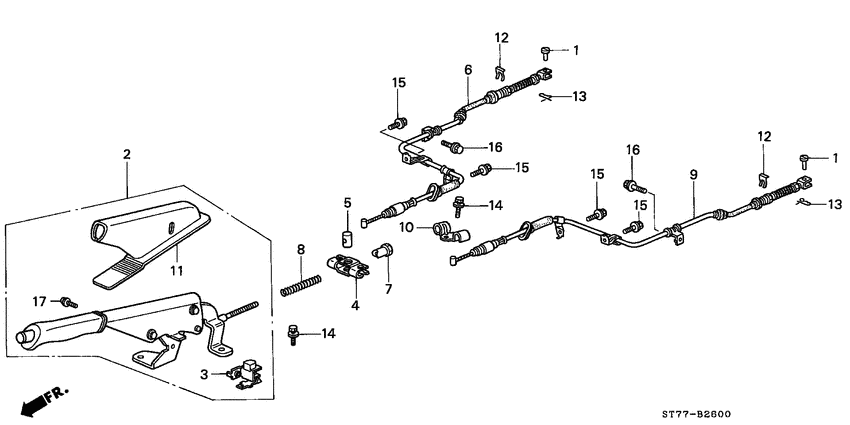

Parking brake Diagram Honda INTEGRA
- Year
- 1999
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KG
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43471-SD2-930 PinBRAKE WIRE END |
43471-SD2-930 |
US $1.92 |
||
|
2
|
2
47105-S04-932ZD
Lever assy.
|
47105-S04-932ZD |
— | ||
|
3
|
3
47342-S04-003
Switch
|
47342-S04-003 |
— | ||
|
4
|
4
47360-SB2-000 Equalizer |
47360-SB2-000 |
from US $6.44 |
||
|
5
|
5
47365-538-000 PinEQUALIZER |
47365-538-000 |
from US $3.08 |
||
|
6
|
6
47510-ST7-R01
Wire a
|
47510-ST7-R01 |
— | ||
|
7
|
7
47522-594-000 NutPARKING BRAKE ADJUSTING |
47522-594-000 |
US $3.34 |
||
|
8
|
8
47537-671-670 SpringPARKING BRAKE ROD |
47537-671-670 |
US $4.49 |
||
|
9
|
9
47560-ST7-R01
Wire a
|
47560-ST7-R01 |
— | ||
|
10
|
10
47572-ST0-000 BaseWIRE GUIDE |
47572-ST0-000 |
from US $3.22 |
||
|
11
|
11
83445-SH3-000ZH CoverPARKING BRAKE *NH167L* |
83445-SH3-000ZH |
from US $16.51 |
||
|
12
|
12
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
13
|
13
90705-SD2-931 PinSNAP, 6MM |
90705-SD2-931 |
from US $1.63 |
||
|
14
|
14
93402-080-200-8 Bolt-washer8X20 |
93402-080-200-8 |
from US $0.74 |
||
|
15
|
15
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
16
|
16
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
||
|
17
|
17
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
