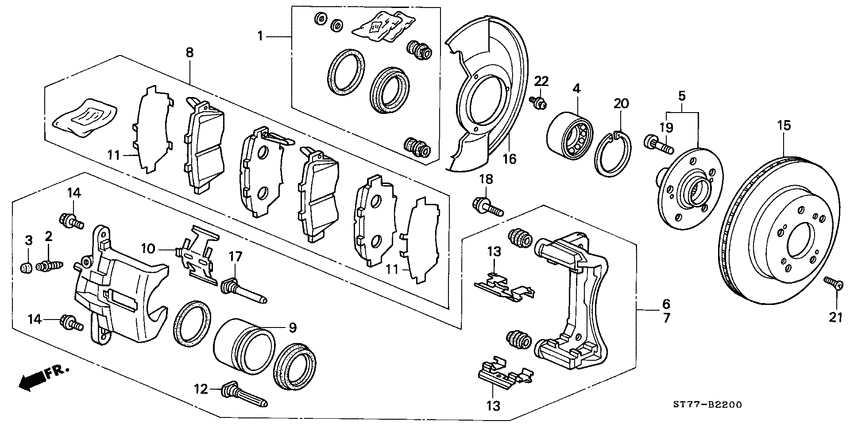

Front brake Diagram Honda INTEGRA
- Year
- 1998
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01463-ST7-R00 Caliper setFR. |
01463-ST7-R00 |
from US $41.89 |
||
|
2
|
2
43352-SM4-951 ScrewBLEEDER |
43352-SM4-951 |
from US $3.26 |
||
|
3
|
3
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
4
|
4
44300-S04-A02
Bearing assy
|
44300-S04-A02 |
— | ||
| replacement | |||||
|
4
|
4
44300-S5A-004 FR HUB Bearing assy (KOYO SEIKO) |
44300-S5A-004 |
US $101.73 |
||
|
4
|
4
44300-S04-A01
Bearing assy
|
44300-S04-A01 |
— | ||
| replacement | |||||
|
4
|
4
44300-S5A-008 FR HUB Bearing assy (NTN) |
44300-S5A-008 |
US $130.90 |
||
|
5
|
5
44600-ST7-R00 Hub assyFR. |
44600-ST7-R00 |
US $158.72 |
||
|
6
|
6
45018-SM5-000 Caliper sub assy.R. FR. |
45018-SM5-000 |
US $385.28 |
||
|
7
|
7
45019-SM5-000 Caliper sub assy.L. FR. |
45019-SM5-000 |
US $385.28 |
||
|
8
|
8
45022-ST7-R01 Pad setFR. |
45022-ST7-R01 |
US $126.72 |
||
|
9
|
9
45216-SM4-003 Piston |
45216-SM4-003 |
US $26.11 |
||
|
10
|
10
45227-SM4-003
Spring
|
45227-SM4-003 |
— | ||
|
11
|
11
45228-SL0-003
Shim
|
45228-SL0-003 |
— | ||
|
12
|
12
45235-SL0-003 Pin a |
45235-SL0-003 |
US $8.12 |
||
|
13
|
13
45237-SM5-A01 Retainer |
45237-SM5-A01 |
US $6.30 |
||
|
14
|
14
45240-SM4-003 BoltFLANGE, 10X24 |
45240-SM4-003 |
from US $2.17 |
||
|
15
|
15
45251-SZ3-000 DiskFR. BRAKE (15") |
45251-SZ3-000 |
US $211.20 |
||
|
16
|
16
45255-ST7-R00 GuardFR. BRAKE SPLASH |
45255-ST7-R00 |
US $31.74 |
||
|
17
|
17
45262-SL0-003 Pin b |
45262-SL0-003 |
US $8.12 |
||
|
18
|
18
90107-SM4-000 BoltCALIPER MOUNTING (12X21) |
90107-SM4-000 |
from US $2.03 |
||
|
19
|
19
90113-SD4-901
Bolt
|
90113-SD4-901 |
— | ||
| replacement | |||||
|
19
|
19
90113-SD4-902 BoltWHEEL (SAGA) |
90113-SD4-902 |
US $4.88 |
||
|
19
|
19
90113-SD4-902 BoltWHEEL (SAGA) |
90113-SD4-902 |
US $4.88 |
||
|
20
|
20
90681-SR3-A00 Circlip, SPECIAL INTERNAL, 79MM |
90681-SR3-A00 |
US $9.77 |
||
|
21
|
21
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.44 |
||
|
22
|
22
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
