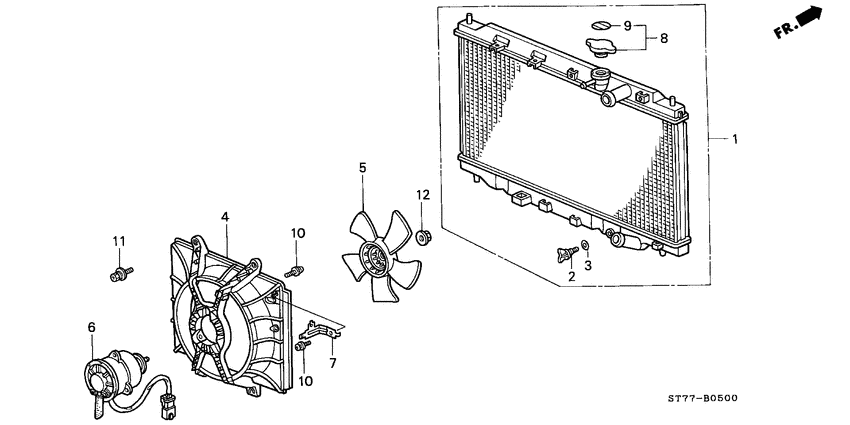

Radiator (DENSO) Diagram Honda INTEGRA
- Year
- 1998
- Model code
- INTEGRA
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-P73-A03
Radiator comp
|
19010-P73-A03 |
— | ||
|
2
|
2
19011-PH1-621 BoltDRAIN (DENSO) |
19011-PH1-621 |
from US $5.91 |
||
|
3
|
3
19012-671-300 PackingDRAIN (DENSO) |
19012-671-300 |
US $1.95 |
||
|
4
|
4
19015-P72-003
Shroud comp
|
19015-P72-003 |
— | ||
|
5
|
5
19020-PT0-003 FanCOOLING (DENSO) |
19020-PT0-003 |
US $48.28 |
||
|
6
|
6
19030-P08-013 MotorCOOLING FAN (DENSO) |
19030-P08-013 |
US $256 |
||
|
7
|
7
19033-P72-003
Stay
|
19033-P72-003 |
— | ||
|
8
|
8
19045-P08-013
Cap comp.
|
19045-P08-013 |
— | ||
| replacement | |||||
|
8
|
8
19045-PAA-A01 Cap comp.RADIATOR (DENSO) |
19045-PAA-A01 |
from US $16.16 |
||
|
9
|
9
19046-PV1-000 SealCAP |
19046-PV1-000 |
US $2.10 |
||
|
10
|
10
90041-P08-003 Screw-washer4X11 |
90041-P08-003 |
US $1.82 |
||
|
11
|
11
90042-PH2-003 Bolt-washer6X16 (DENSO) |
90042-PH2-003 |
US $1.26 |
||
| replacement | |||||
|
11
|
11
90042-PAA-A01 Bolt-washer6X16 (DENSO) |
90042-PAA-A01 |
US $1.39 |
||
|
12
|
12
90043-PD2-003 NutHEX., 5MM (DENSO) |
90043-PD2-003 |
from US $2.44 |
||
