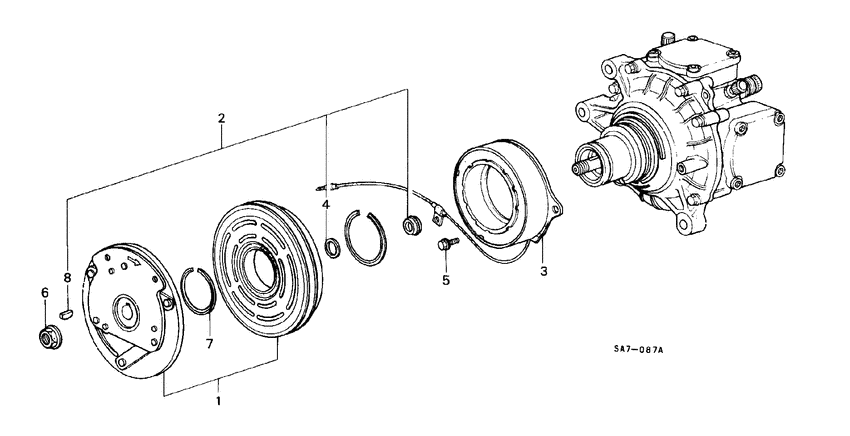

Air conditioner (COMPRESSOR COMPONENTS) Diagram Honda JAZZ
- Year
- 1985
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KE
- right-hand drive
- +
- rear fog light
- +
- air conditioner (dealer set)
- +
- master power
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38011-PC0-015
Clutch set
|
38011-PC0-015 |
— | ||
|
2
|
2
38871-PC0-005 Seal setSHAFT |
38871-PC0-005 |
US $115.84 |
||
|
3
|
3
38924-PC0-005
Solenoid comp.
|
38924-PC0-005 |
— | ||
|
4
|
4
38940-PB8-610
Shim
|
38940-PB8-610 |
— | ||
|
4
|
4
38942-PB8-000
Shim
|
38942-PB8-000 |
— | ||
|
4
|
4
38944-PB8-000
Shim
|
38944-PB8-000 |
— | ||
|
4
|
4
38939-PB8-000
Shim
|
38939-PB8-000 |
— | ||
|
4
|
4
38941-PB8-610
Shim
|
38941-PB8-610 |
— | ||
|
4
|
4
38943-PB8-000
Shim
|
38943-PB8-000 |
— | ||
|
5
|
5
90001-PC0-005
Bolt
|
90001-PC0-005 |
— | ||
|
6
|
6
90201-PB8-000 NutCOMPRESSOR FLANGE, 12MM |
90201-PB8-000 |
US $3.15 |
||
|
7
|
7
90601-PC0-005
Circlip
|
90601-PC0-005 |
— | ||
|
8
|
8
90741-PB8-610
Key
|
90741-PB8-610 |
— |
