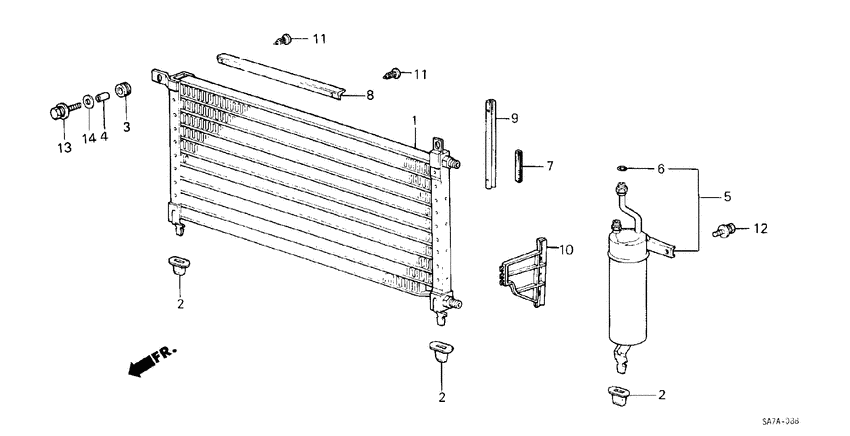

Air conditioner (CONDENSER) Diagram Honda JAZZ
- Year
- 1985
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KE
- right-hand drive
- +
- rear fog light
- +
- air conditioner (dealer set)
- +
- master power
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38600-SA7-033
Condenser assy
|
38600-SA7-033 |
— | ||
|
2
|
2
38601-SA7-000
Rubber
|
38601-SA7-000 |
— | ||
|
3
|
3
38608-692-000 RubberMOUNTING |
38608-692-000 |
US $3.29 |
||
|
4
|
4
38609-692-000 CollarDISTANCE |
38609-692-000 |
from US $2.66 |
||
|
5
|
5
38640-SA7-013
Receiver assy
|
38640-SA7-013 |
— | ||
|
6
|
6
38646-692-660
O-ring
|
38646-692-660 |
— | ||
| replacement | |||||
|
6
|
6
80874-SL0-900 O-ring3/8" |
80874-SL0-900 |
US $3.74 |
||
|
7
|
7
38675-SB1-000
Protector
|
38675-SB1-000 |
— | ||
|
8
|
8
38686-SA7-000
Seal
|
38686-SA7-000 |
— | ||
|
9
|
9
38687-SA7-010
Seal
|
38687-SA7-010 |
— | ||
|
10
|
10
62513-SA7-010
Plate
|
62513-SA7-010 |
— | ||
|
11
|
11
90677-SA0-003ZD
Clip
|
90677-SA0-003ZD |
— | ||
|
12
|
12
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
12
|
12
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
13
|
13
93493-060-200-7 Bolt-washer6X20 |
93493-060-200-7 |
from US $0.59 |
||
| replacement | |||||
|
13
|
13
93403-060-200-7 Bolt-washer6X20 |
93403-060-200-7 |
from US $0.59 |
||
|
14
|
14
94103-06700 WasherPLAIN, 6MM |
94103-06700 |
from US $0.37 |
||
