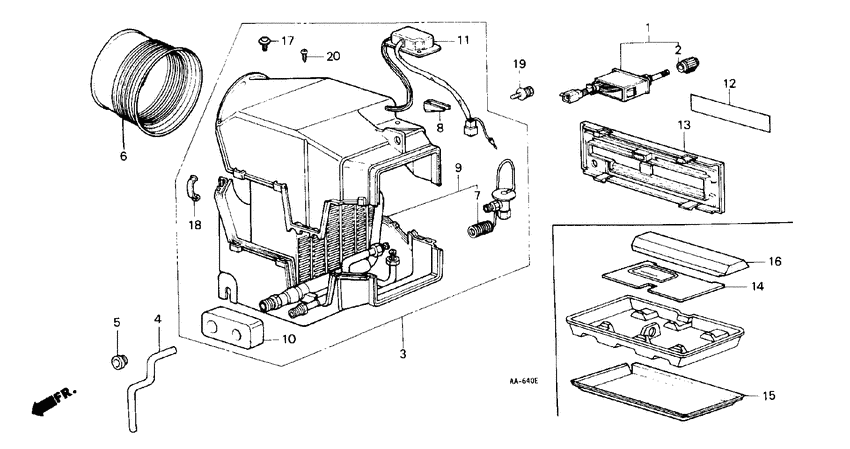

Air conditioner (COOLER UNIT) Diagram Honda JAZZ
- Year
- 1985
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KE
- right-hand drive
- +
- rear fog light
- +
- air conditioner (dealer set)
- +
- master power
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35850-SA7-003
Switch assy
|
35850-SA7-003 |
— | ||
|
2
|
2
35852-SA7-003
Knob
|
35852-SA7-003 |
— | ||
|
3
|
3
38620-SA7-010
Cooling unit
|
38620-SA7-010 |
— | ||
|
4
|
4
38626-SA7-010
Hose
|
38626-SA7-010 |
— | ||
|
5
|
5
38627-692-000
Grommet
|
38627-692-000 |
— | ||
|
6
|
6
38638-SA7-000
Duct
|
38638-SA7-000 |
— | ||
|
7
|
7
38650-SA7-004
Valve
|
38650-SA7-004 |
— | ||
|
7
|
7
38650-SA7-003
Valve
|
38650-SA7-003 |
— | ||
|
8
|
8
38654-680-960
Clamp
|
38654-680-960 |
— | ||
|
9
|
9
38655-SA7-013
Evaporator sub assy.
|
38655-SA7-013 |
— | ||
|
10
|
10
38679-SA5-000
Packing
|
38679-SA5-000 |
— | ||
|
11
|
11
38730-680-961
Controller
|
38730-680-961 |
— | ||
|
12
|
12
38751-SA7-601
Display
|
38751-SA7-601 |
— | ||
|
13
|
13
39391-SA7-003ZA
Panel
|
39391-SA7-003ZA |
— | ||
|
14
|
14
66419-SA7-600
Insulator
|
66419-SA7-600 |
— | ||
|
15
|
15
66422-SA7-000
Insulator
|
66422-SA7-000 |
— | ||
|
16
|
16
66431-SA7-000
Insulator
|
66431-SA7-000 |
— | ||
|
17
|
17
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
17
|
17
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
18
|
18
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
19
|
19
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
19
|
19
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
19
|
19
93495-060-200-8 Bolt-washer6X20 |
93495-060-200-8 |
US $0.59 |
||
|
20
|
20
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
