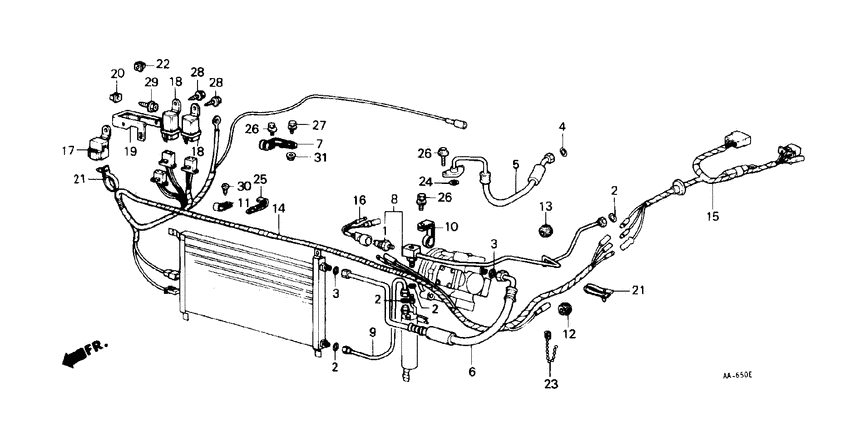

Air conditioner (HOSES/PIPES) Diagram Honda JAZZ
- Year
- 1985
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KE
- right-hand drive
- +
- rear fog light
- +
- air conditioner (dealer set)
- +
- master power
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38645-680-961
Switch
|
38645-680-961 |
— | ||
|
2
|
2
38646-692-660
O-ring
|
38646-692-660 |
— | ||
| replacement | |||||
|
2
|
2
80874-SL0-900 O-ring3/8" |
80874-SL0-900 |
US $3.74 |
||
|
3
|
3
38647-692-660 O-ring1/2" |
38647-692-660 |
US $2.87 |
||
|
4
|
4
38648-692-660 O-ring5/8" |
38648-692-660 |
US $2.87 |
||
|
5
|
5
38670-SA7-033
Hose comp.
|
38670-SA7-033 |
— | ||
|
6
|
6
38671-SA7-003
Hose comp.
|
38671-SA7-003 |
— | ||
|
7
|
7
38673-SA7-000
Clamp
|
38673-SA7-000 |
— | ||
|
8
|
8
38681-SA7-023
Pipe
|
38681-SA7-023 |
— | ||
|
9
|
9
38682-SA7-023
Pipe
|
38682-SA7-023 |
— | ||
|
10
|
10
38684-SA7-010
Clamp
|
38684-SA7-010 |
— | ||
|
11
|
11
38684-692-670
Clamp b
|
38684-692-670 |
— | ||
|
12
|
12
38691-680-960
Grommet
|
38691-680-960 |
— | ||
|
13
|
13
38692-680-960 GrommetLIQUID PIPE |
38692-680-960 |
US $5.04 |
||
|
14
|
14
38710-SA7-611
Harness
|
38710-SA7-611 |
— | ||
|
15
|
15
38711-SA7-610
Sub cord
|
38711-SA7-610 |
— | ||
|
16
|
16
38711-692-010
Protector
|
38711-692-010 |
— | ||
|
17
|
17
38725-SA5-003
Diode assy.
|
38725-SA5-003 |
— | ||
|
18
|
18
39400-SA5-003 Relay assyPOWER (4P) (MITSUBA) |
39400-SA5-003 |
US $56.19 |
||
|
19
|
19
39402-SA7-030
Bracket
|
39402-SA7-030 |
— | ||
|
20
|
20
90662-671-003 GrommetSCREW, 5MM (WHITE) |
90662-671-003 |
US $2.59 |
||
|
21
|
21
90668-671-003 Strap aCABLE, 95MM (WHITE) |
90668-671-003 |
US $3.96 |
||
|
22
|
22
90676-SA7-003 GrommetSCREW, 5MM (BLACK) |
90676-SA7-003 |
US $1.54 |
||
|
23
|
23
90690-671-000
Band
|
90690-671-000 |
— | ||
|
24
|
24
91308-PB8-610
O-ring
|
91308-PB8-610 |
— | ||
|
25
|
25
91406-657-671 ClipWIRE HARNESS |
91406-657-671 |
from US $3.70 |
||
|
26
|
26
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
26
|
26
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
27
|
27
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
27
|
27
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
28
|
28
93903-15280 ScrewTAPPING, 5X12 |
93903-15280 |
US $0.37 |
||
|
29
|
29
93903-16120 ScrewTAPPING, 6X12 |
93903-16120 |
US $0.44 |
||
|
30
|
30
93904-16120 ScrewTAPPING, 6X12 |
93904-16120 |
US $0.78 |
||
|
31
|
31
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
