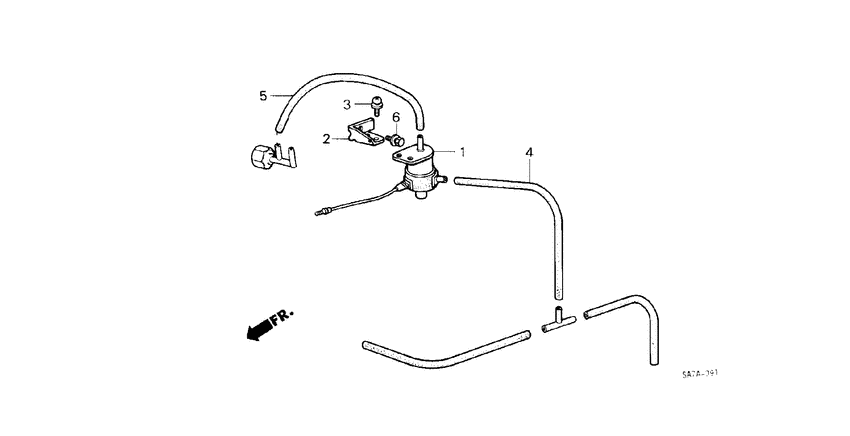

Air conditioner (MT; CARBURETOR COMPONENTS) Diagram Honda JAZZ
- Year
- 1985
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KE
- right-hand drive
- +
- rear fog light
- +
- air conditioner (dealer set)
- +
- master power
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38771-PE8-621
Valve assy.
|
38771-PE8-621 |
— | ||
|
2
|
2
38775-PC0-000
Stay
|
38775-PC0-000 |
— | ||
|
3
|
3
90092-657-000 Screw-washer5X8 |
90092-657-000 |
from US $1.32 |
||
|
4
|
4
95005-352-701-0 Tube3.5X270(95005-35001-10M) |
95005-352-701-0 |
US $3.26 |
||
|
5
|
5
95005-353-801-0 Tube3.5X380(95005-35001-10M) |
95005-353-801-0 |
US $4.14 |
||
|
6
|
6
95700-060-140-8 BoltFLANGE, 6X14 |
95700-060-140-8 |
from US $0.52 |
||
| replacement | |||||
|
6
|
6
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
