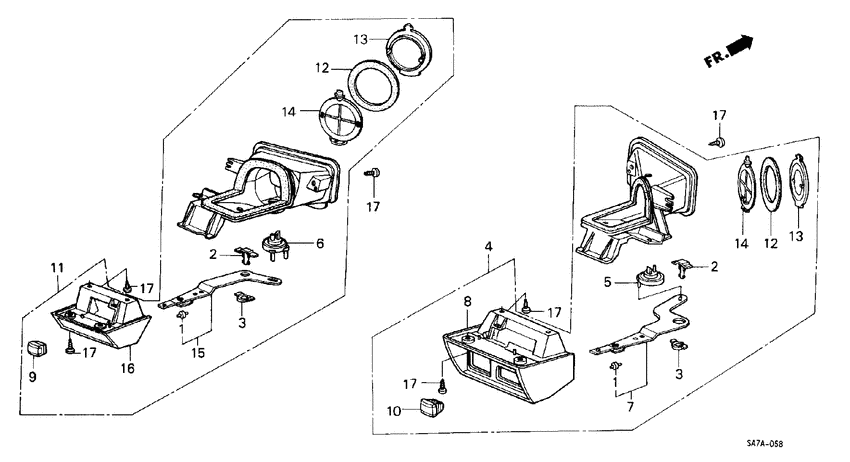

Fresh air vents (E,Q) Diagram Honda JAZZ
- Year
- 1985
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER4
- transmission
- 3AT
- Number of doors
- 3
- grade
- DX
- area code
- KE
- right-hand drive
- +
- rear fog light
- +
- master power
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39379-692-660
Roller
|
39379-692-660 |
— | ||
|
2
|
2
39384-SB0-000
Shaft
|
39384-SB0-000 |
— | ||
|
3
|
3
39385-SA5-000
Stopper
|
39385-SA5-000 |
— | ||
|
4
|
4
64420-SA7-000ZA
Box assy
|
64420-SA7-000ZA |
— | ||
|
5
|
5
64424-SA7-000
Shaft a
|
64424-SA7-000 |
— | ||
|
6
|
6
64425-SA7-000
Shaft b
|
64425-SA7-000 |
— | ||
|
7
|
7
64427-SA7-000
Lever
|
64427-SA7-000 |
— | ||
|
8
|
8
64428-SA7-000ZA CaseSWITCH *NH1L* |
64428-SA7-000ZA |
US $34.43 |
||
|
9
|
9
64431-693-000
Knob
|
64431-693-000 |
— | ||
|
10
|
10
64432-693-000
Knob
|
64432-693-000 |
— | ||
|
11
|
11
64440-SA7-010ZA
Box assy
|
64440-SA7-010ZA |
— | ||
|
12
|
12
64442-SA0-000
Seal
|
64442-SA0-000 |
— | ||
|
13
|
13
64443-SA0-910
Valve a
|
64443-SA0-910 |
— | ||
|
14
|
14
64444-SA0-911
Valve b
|
64444-SA0-911 |
— | ||
|
15
|
15
64447-SA7-000
Lever
|
64447-SA7-000 |
— | ||
|
16
|
16
64448-SA7-010ZA PanelL. VENT CONTROL LEVER *NH1L* |
64448-SA7-010ZA |
US $27.26 |
||
|
17
|
17
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
17
|
17
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
