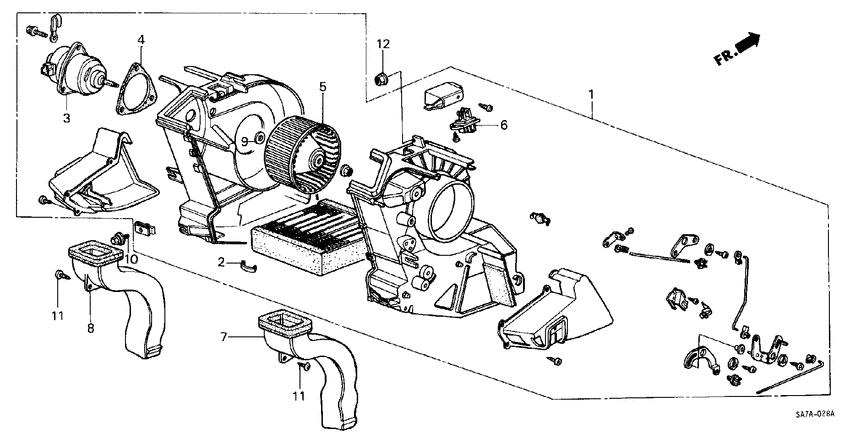

Heater unit Diagram Honda JAZZ
- Year
- 1985
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER4
- transmission
- 3AT
- Number of doors
- 3
- grade
- DX
- area code
- KE
- right-hand drive
- +
- rear fog light
- +
- master power
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39210-SA7-901
Heater unit
|
39210-SA7-901 |
— | ||
|
2
|
2
39246-671-003
Clamp
|
39246-671-003 |
— | ||
|
3
|
3
39430-SA7-003
Motor assy.
|
39430-SA7-003 |
— | ||
|
4
|
4
39432-SA5-003
Packing
|
39432-SA5-003 |
— | ||
|
5
|
5
39436-692-003
Fan
|
39436-692-003 |
— | ||
|
6
|
6
39473-SA7-003
Resistor
|
39473-SA7-003 |
— | ||
|
7
|
7
39491-SA7-010
Hose
|
39491-SA7-010 |
— | ||
|
8
|
8
39492-SA7-010
Hose
|
39492-SA7-010 |
— | ||
|
9
|
9
90501-671-003 WasherSPECIAL |
90501-671-003 |
US $7.33 |
||
|
10
|
10
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
10
|
10
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
11
|
11
93903-14320 ScrewTAPPING, 4X12 |
93903-14320 |
from US $0.37 |
||
|
12
|
12
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
||
