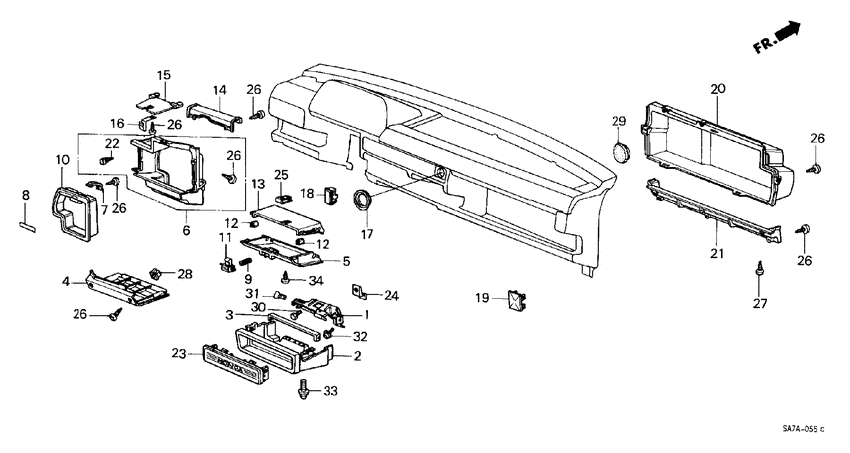

Instrument panel component Diagram Honda JAZZ
- Year
- 1985
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER4
- transmission
- 3AT
- Number of doors
- 3
- grade
- DX
- area code
- KE
- right-hand drive
- +
- rear fog light
- +
- master power
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39104-SA7-601
Bracket b
|
39104-SA7-601 |
— | ||
|
2
|
2
39131-SA7-731ZA
Panel
|
39131-SA7-731ZA |
— | ||
|
3
|
3
39132-SA7-920
Frame
|
39132-SA7-920 |
— | ||
|
4
|
4
66131-SA7-010ZA
Bridge
|
66131-SA7-010ZA |
— | ||
|
5
|
5
66161-SA7-010ZA
Case
|
66161-SA7-010ZA |
— | ||
|
6
|
6
66162-SA7-010ZA
Tray assy
|
66162-SA7-010ZA |
— | ||
|
7
|
7
66163-SA7-000
Spring
|
66163-SA7-000 |
— | ||
|
8
|
8
66164-SA0-000
Label
|
66164-SA0-000 |
— | ||
|
9
|
9
66166-SA7-000
Spring
|
66166-SA7-000 |
— | ||
|
10
|
10
66167-SA7-010ZA
Lid
|
66167-SA7-010ZA |
— | ||
|
11
|
11
66168-SA7-010ZA
Knob
|
66168-SA7-010ZA |
— | ||
|
12
|
12
66169-SA7-000
Cushion
|
66169-SA7-000 |
— | ||
|
13
|
13
66171-SA7-000ZD
Roof
|
66171-SA7-000ZD |
— | ||
|
13
|
13
66171-SA7-000ZC RoofACCESSORY CASE *B32L* |
66171-SA7-000ZC |
US $22.53 |
||
|
14
|
14
66172-SA7-000
Protector
|
66172-SA7-000 |
— | ||
|
17
|
17
66217-SA7-010ZA
Protector
|
66217-SA7-010ZA |
— | ||
|
20
|
20
66262-SA7-010ZA
Tray
|
66262-SA7-010ZA |
— | ||
|
21
|
21
66263-SA7-010ZA
Cover
|
66263-SA7-010ZA |
— | ||
|
22
|
22
66418-579-000 StopperGLOVE BOX LID |
66418-579-000 |
US $8.40 |
||
|
25
|
25
66871-611-000 NutCENTER PANEL |
66871-611-000 |
from US $1.78 |
||
|
26
|
26
90102-SA4-000 ScrewTAPPING, 4X16 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
26
|
26
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
27
|
27
90105-SA7-000 Screw-washer4X16 |
90105-SA7-000 |
from US $0.28 |
||
|
28
|
28
90651-692-731
Nut
|
90651-692-731 |
— | ||
|
29
|
29
90859-SA0-000 GrommetFR. WHEELHOUSE |
90859-SA0-000 |
US $2.80 |
||
|
30
|
30
92000-05012-0G BoltHEX., 5X12 |
92000-05012-0G |
from US $0.37 |
||
| replacement | |||||
|
30
|
30
92101-05012-0G Bolt, hex. (5x12) |
92101-05012-0G |
from US $0.37 |
||
|
31
|
31
93600-040-081-A ScrewFLAT, 4X8 |
93600-040-081-A |
from US $0.37 |
||
|
32
|
32
93891-040-081-8 Screw-washer4X8 |
93891-040-081-8 |
from US $0.44 |
||
| replacement | |||||
|
32
|
32
93891-040-080-8 Screw-washer4X8 |
93891-040-080-8 |
from US $0.44 |
||
|
33
|
33
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
|
34
|
34
93903-14380 ScrewTAPPING, 4X12 |
93903-14380 |
from US $0.41 |
||
