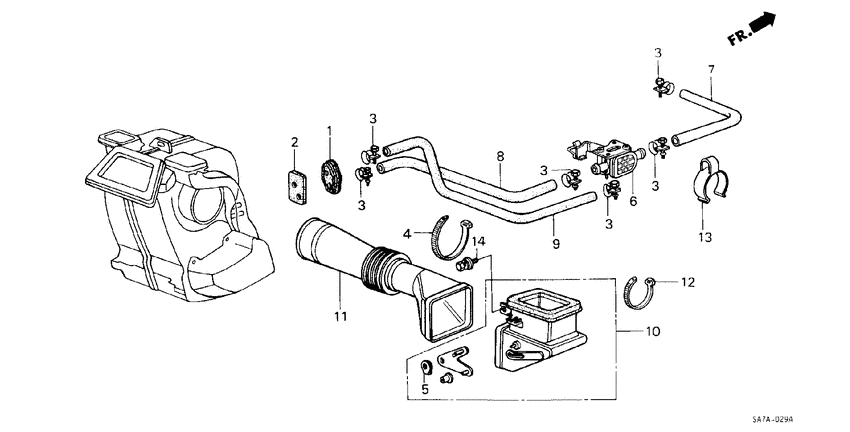

Water hose/heater duct Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- rear fog light
- +
- master power
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39214-SA7-000
Grommet
|
39214-SA7-000 |
— | ||
|
2
|
2
39217-SA7-010
Packing
|
39217-SA7-010 |
— | ||
|
3
|
3
39223-671-000
Clamp
|
39223-671-000 |
— | ||
|
4
|
4
39228-PA0-901
Band
|
39228-PA0-901 |
— | ||
|
5
|
5
39246-692-003
Stopper
|
39246-692-003 |
— | ||
|
6
|
6
39270-SA7-901
Valve assy.
|
39270-SA7-901 |
— | ||
|
7
|
7
39311-SA7-730
Hose a
|
39311-SA7-730 |
— | ||
|
8
|
8
39312-SA7-010
Hose
|
39312-SA7-010 |
— | ||
|
9
|
9
39313-SA7-040
Hose b
|
39313-SA7-040 |
— | ||
|
10
|
10
39410-SA7-013
Box
|
39410-SA7-013 |
— | ||
|
11
|
11
39480-SA7-013
Duct
|
39480-SA7-013 |
— | ||
|
12
|
12
90656-PB1-003 BandOIL HOSE |
90656-PB1-003 |
US $2.10 |
||
|
13
|
13
90661-SA0-000
Holder
|
90661-SA0-000 |
— | ||
|
14
|
14
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
14
|
14
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
