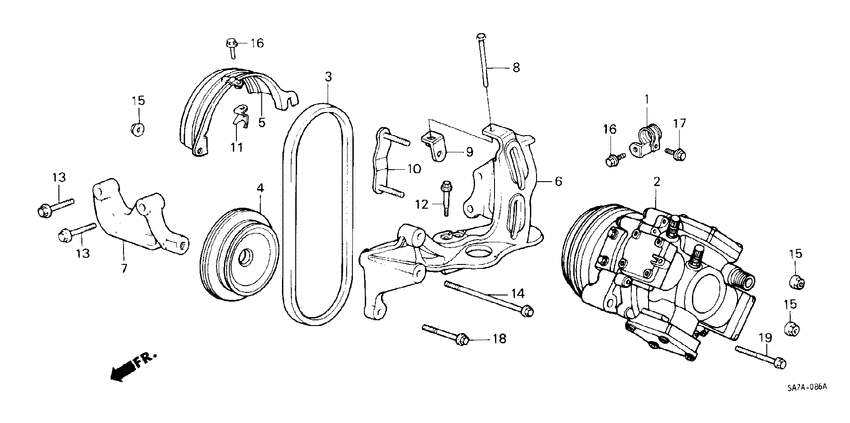

Air conditioner (COMPRESSOR) Diagram Honda JAZZ
- Year
- 1985
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- rear fog light
- +
- air conditioner (dealer set)
- +
- master power
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38673-PC0-000
Clamp
|
38673-PC0-000 |
— | ||
|
2
|
2
38800-PC0-045
Compressor assy
|
38800-PC0-045 |
— | ||
|
3
|
3
38920-PC0-014 BeltCOMPRESSOR (MITSUBOSHI) |
38920-PC0-014 |
US $17.92 |
||
|
3
|
3
38920-PC0-013
Belt
|
38920-PC0-013 |
— | ||
|
4
|
4
38921-PC0-000
Pulley
|
38921-PC0-000 |
— | ||
|
5
|
5
38925-PB1-030
Cover
|
38925-PB1-030 |
— | ||
|
6
|
6
38930-PC0-020
Bracket a
|
38930-PC0-020 |
— | ||
|
7
|
7
38932-PC0-000
Bracket b
|
38932-PC0-000 |
— | ||
|
8
|
8
38934-671-000
Bolt
|
38934-671-000 |
— | ||
|
9
|
9
38936-PB1-000
Lifter
|
38936-PB1-000 |
— | ||
|
10
|
10
38937-PB1-000
Bolt
|
38937-PB1-000 |
— | ||
|
11
|
11
38955-PC0-010
Stay comp
|
38955-PC0-010 |
— | ||
|
12
|
12
90003-PB1-000
Bolt b
|
90003-PB1-000 |
— | ||
|
13
|
13
90086-671-000 BoltFLANGE, 10X45 |
90086-671-000 |
US $3.57 |
||
|
14
|
14
90088-689-000
Bolt
|
90088-689-000 |
— | ||
|
15
|
15
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
16
|
16
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
16
|
16
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
17
|
17
95700-060-140-8 BoltFLANGE, 6X14 |
95700-060-140-8 |
from US $0.52 |
||
| replacement | |||||
|
17
|
17
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
18
|
18
95700-100-350-8 BoltFLANGE, 10X35 |
95700-100-350-8 |
US $0.81 |
||
|
19
|
19
95700-100-650-8 BoltFLANGE, 10X65 |
95700-100-650-8 |
US $1.18 |
||
