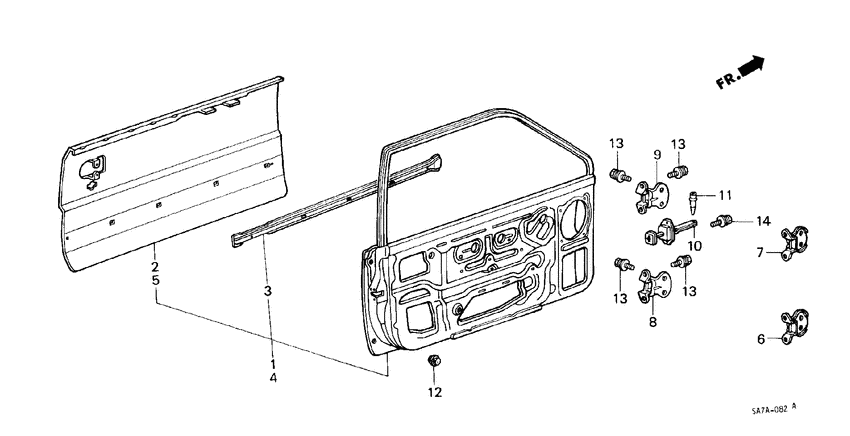

Door panels Diagram Honda JAZZ
- Year
- 1985
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER4
- transmission
- 3AT
- Number of doors
- 3
- grade
- DX
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- rear fog light
- +
- master power
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-SA7-730ZZ
Panel comp
|
75110-SA7-730ZZ |
— | ||
|
2
|
2
75111-SA7-730ZZ
Skin
|
75111-SA7-730ZZ |
— | ||
|
3
|
3
75127-SA7-300ZZ
Stiffener
|
75127-SA7-300ZZ |
— | ||
|
4
|
4
75150-SA7-730ZZ
Panel comp
|
75150-SA7-730ZZ |
— | ||
|
5
|
5
75151-SA7-730ZZ
Skin
|
75151-SA7-730ZZ |
— | ||
|
6
|
6
75710-SA0-013ZZ
Hinge a
|
75710-SA0-013ZZ |
— | ||
|
7
|
7
75710-SA7-013ZZ
Hinge a
|
75710-SA7-013ZZ |
— | ||
|
8
|
8
75720-SA0-013ZZ
Hinge b
|
75720-SA0-013ZZ |
— | ||
|
9
|
9
75720-SA7-013ZZ
Hinge b
|
75720-SA7-013ZZ |
— | ||
|
10
|
10
75750-SA7-003
Checker comp.
|
75750-SA7-003 |
— | ||
|
11
|
11
75760-SA5-003 PinDOOR CHECKER |
75760-SA5-003 |
US $4.62 |
||
|
12
|
12
75891-SA7-000 StopperDOOR |
75891-SA7-000 |
US $1.70 |
||
|
13
|
13
90157-SA0-000 Bolt-washer8X25 |
90157-SA0-000 |
US $2.37 |
||
|
14
|
14
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
14
|
14
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
