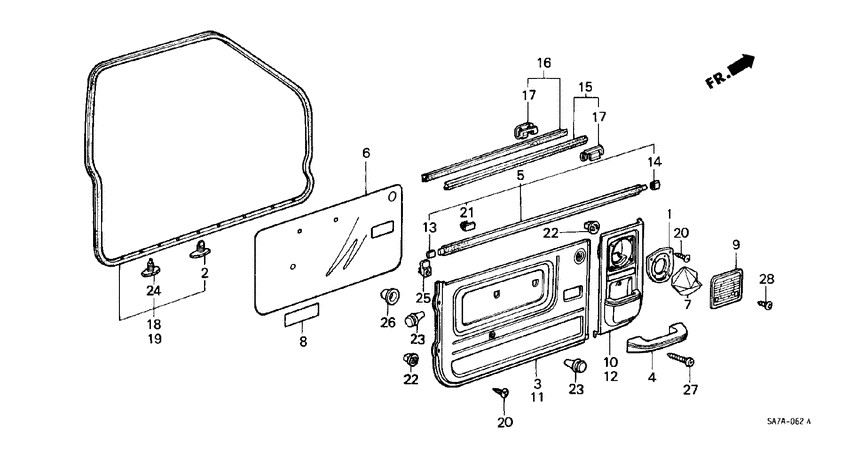

Door lining Diagram Honda JAZZ
- Year
- 1984
- Model code
- JAZZ
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
- master power
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
73862-672-003
Clip
|
73862-672-003 |
— | ||
|
3
|
3
75821-SA7-730ZA
Lining
|
75821-SA7-730ZA |
— | ||
|
4
|
4
75824-SA7-020ZA
Armrest
|
75824-SA7-020ZA |
— | ||
|
5
|
5
75825-SA7-010ZA
Holder
|
75825-SA7-010ZA |
— | ||
|
6
|
6
75826-SA7-000
Seal
|
75826-SA7-000 |
— | ||
|
7
|
7
75827-SB1-000
Cover
|
75827-SB1-000 |
— | ||
|
8
|
8
75827-SA7-900
Tape
|
75827-SA7-900 |
— | ||
|
9
|
9
75828-SA7-000ZC
Lid
|
75828-SA7-000ZC |
— | ||
|
9
|
9
75828-SA7-970ZC
Lid
|
75828-SA7-970ZC |
— | ||
|
10
|
10
75829-SA7-000ZC
Pocket comp.
|
75829-SA7-000ZC |
— | ||
|
11
|
11
75831-SA7-730ZA
Lining
|
75831-SA7-730ZA |
— | ||
|
12
|
12
75839-SA7-000ZC
Pocket comp.
|
75839-SA7-000ZC |
— | ||
|
13
|
13
75841-SA7-310ZB
Cap a *b32l*
|
75841-SA7-310ZB |
— | ||
|
14
|
14
75842-SA7-310ZB
Cap b *b32l*
|
75842-SA7-310ZB |
— | ||
|
15
|
15
75850-SA7-000
Weatherstrip comp.
|
75850-SA7-000 |
— | ||
|
16
|
16
75860-SA7-000
Weatherstrip comp.
|
75860-SA7-000 |
— | ||
|
17
|
17
75864-SA7-000 ClipDOOR WEATHERSTRIP |
75864-SA7-000 |
US $3.92 |
||
|
18
|
18
75880-SA7-004
Weatherstrip
|
75880-SA7-004 |
— | ||
|
18
|
18
75880-SA7-003
Weatherstrip
|
75880-SA7-003 |
— | ||
|
19
|
19
75885-SA7-004
Weatherstrip
|
75885-SA7-004 |
— | ||
|
19
|
19
75885-SA7-003
Weatherstrip
|
75885-SA7-003 |
— | ||
|
20
|
20
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
20
|
20
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
21
|
21
90674-SB1-000
Clip
|
90674-SB1-000 |
— | ||
|
22
|
22
90662-SA7-000 GrommetSCREW, 4MM |
90662-SA7-000 |
US $2.38 |
||
|
23
|
23
90664-SA7-003ZC
Clip
|
90664-SA7-003ZC |
— | ||
|
24
|
24
90664-671-003 ClipCANOE |
90664-671-003 |
from US $3.40 |
||
|
25
|
25
90665-SA7-000
Grommet
|
90665-SA7-000 |
— | ||
|
26
|
26
90686-692-003 CapLINING MOUNT |
90686-692-003 |
US $2.12 |
||
|
27
|
27
93901-26510 ScrewTAPPING, 6X30 |
93901-26510 |
US $0.52 |
||
|
28
|
28
93903-34180 ScrewTAPPING, 4X8 |
93903-34180 |
from US $0.37 |
||
